Hi, Could you please solve and explain each step for the following problem. Thank you!
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Hi, Could you please solve and explain each step for the following problem. Thank you!
Hi, Could you please solve and explain each step for thefollowing problem. Thank you!

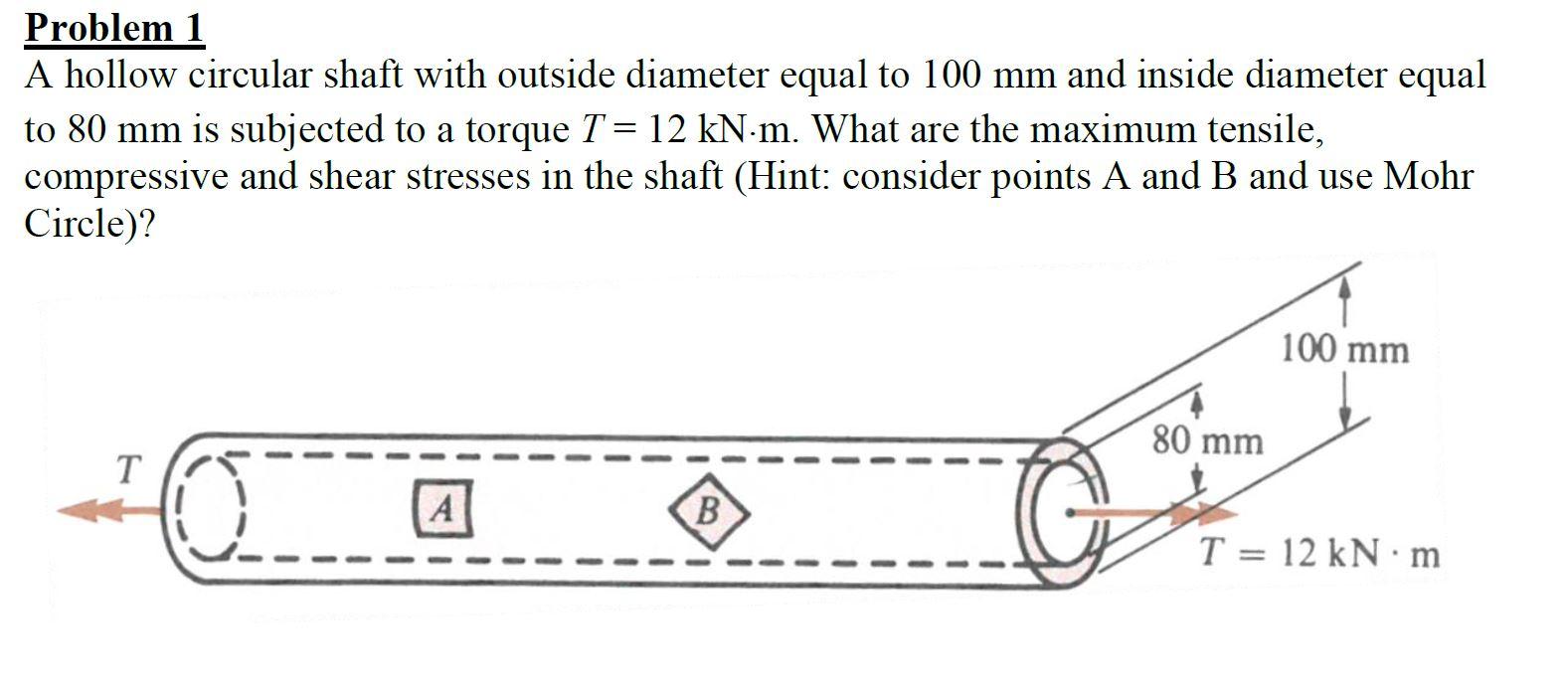

Problem 1 A hollow circular shaft with outside diameter equal to 100 mm and inside diameter equal to 80 mm is subjected to a torque T=12kN⋅m. What are the maximum tensile, compressive and shear stresses in the shaft (Hint: consider points A and B and use Mohr Circle)?
Problem 1 A hollow circular shaft with outside diameter equal to 100 mm and inside diameter equal to 80 mm is subjected to a torque T=12kN⋅m. What are the maximum tensile, compressive and shear stresses in the shaft (Hint: consider points A and B and use Mohr Circle)?
