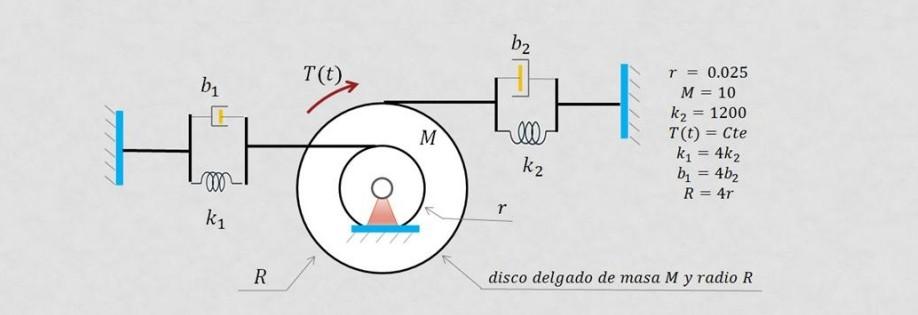

consider the mechanical system a) Applying the final value theorem, calculate the constant Torque that must be applied to the disk in a su final position is half a turn clockwise b) Considering the torque calculated in the previous section, determine the value for the damper 𝑏2 for which the system behaves in an underdamped manner with a maximum overshoot of 5% of the final value c) With the values ​​obtained, create a simulation of the behavior of the system and present the graph correspondent. d) Calculate the peak time corresponding to the maximum overshoot and compare with the simulation in Matlab e) Calculate the settling time and compare with the simulation results f) Determine and locate the poles of the transfer function of the system. What value corresponds to 𝜔𝑑 ?
