I need help making a free body diagram: 2 types: dynamic andstatic.
For a feeder, it will feed through thin metal sheet. It willalso include a cutting blade in the back side
Include all forces and stresses due to forces involved andplease point each out and outline them.
Ignore two vertical rods. The rest will be rotating part of aconveyor belt.
Thank you so much!

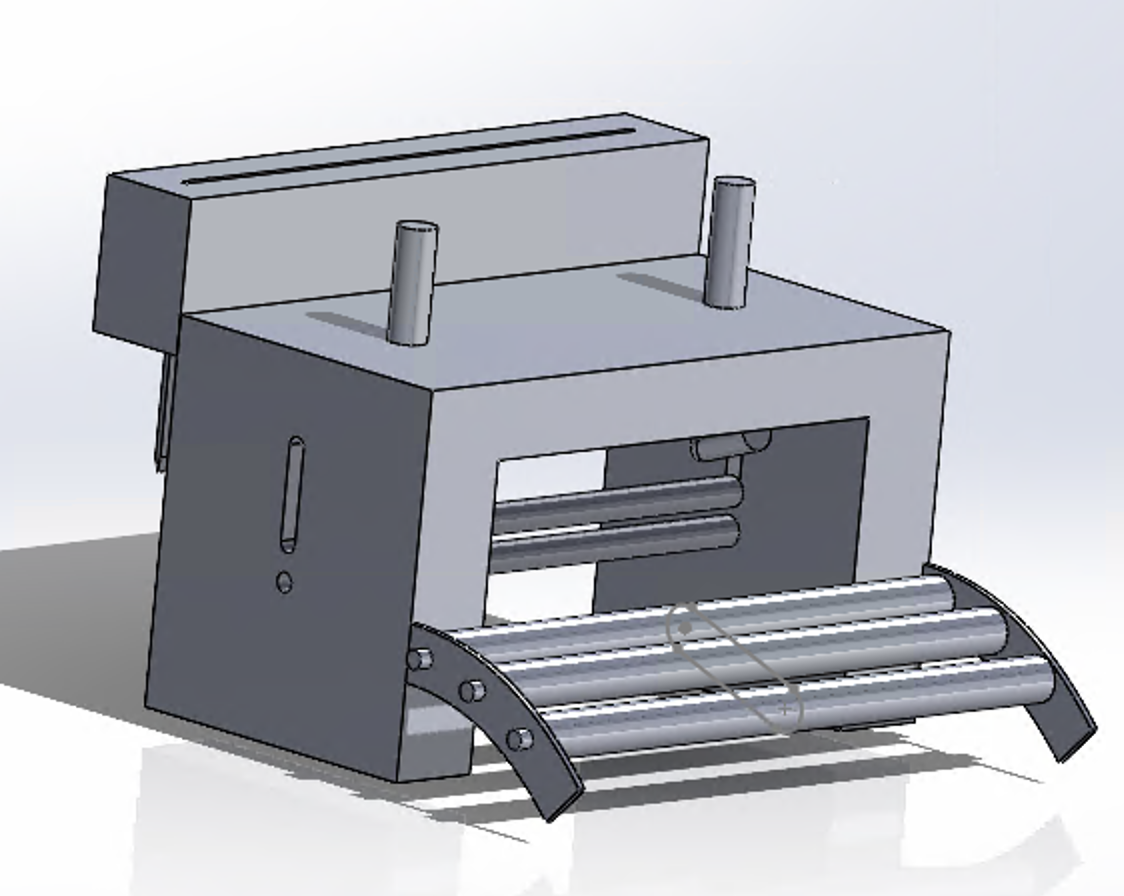

I Need Help Making A Free Body Diagram 2 Types Dynamic And Static For A Feeder It Will Feed Through Thin Metal Sheet 1 (702.49 KiB) Viewed 32 times
