Water flows in the branching pipe shown in the figure below with uniform velocity at each inlet and outlet. The fixed co

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Water flows in the branching pipe shown in the figure below with uniform velocity at each inlet and outlet. The fixed co

Post by answerhappygod »

Water Flows In The Branching Pipe Shown In The Figure Below With Uniform Velocity At Each Inlet And Outlet The Fixed Co 1
Water Flows In The Branching Pipe Shown In The Figure Below With Uniform Velocity At Each Inlet And Outlet The Fixed Co 1 (226.24 KiB) Viewed 37 times

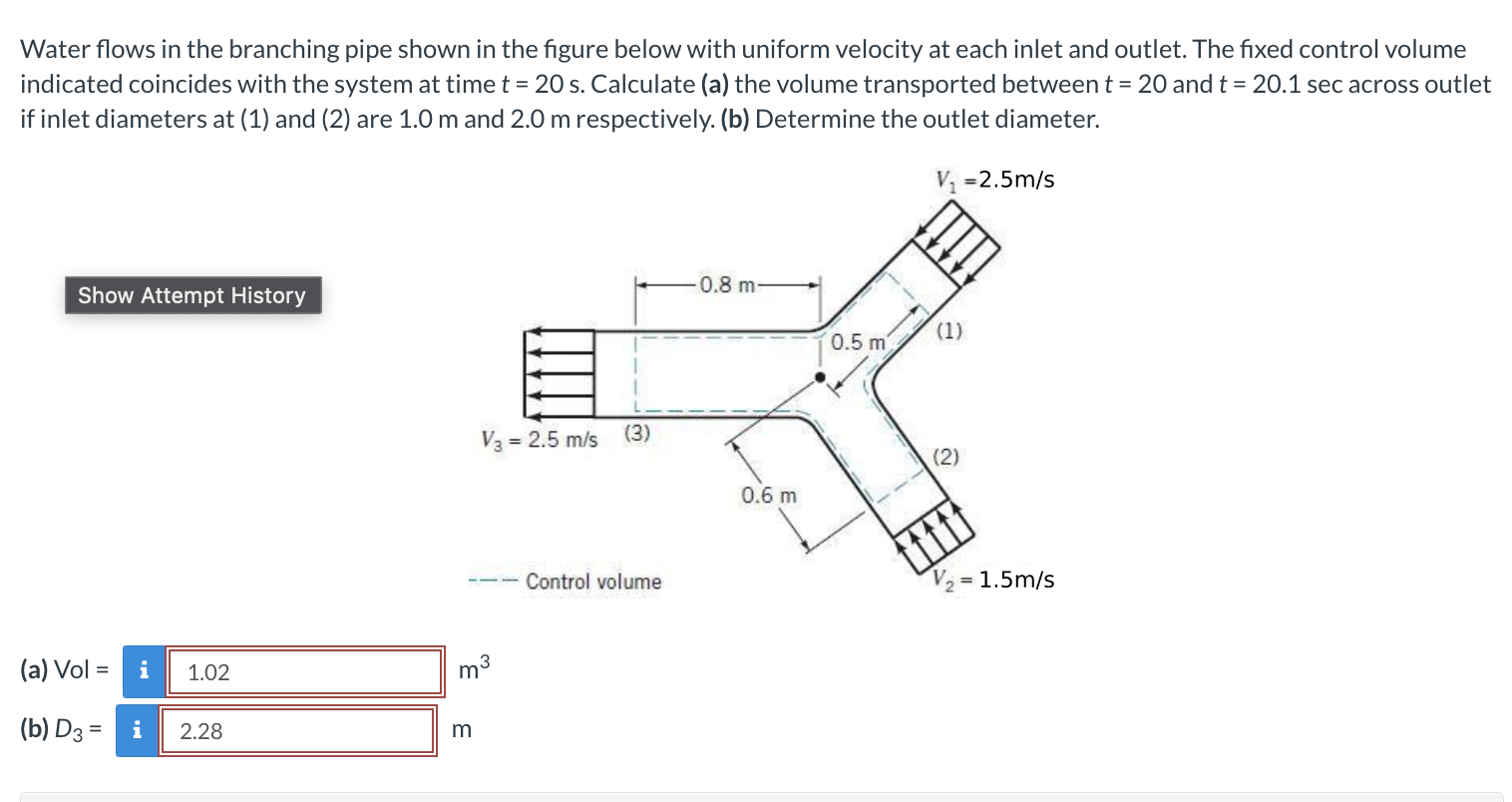

Water flows in the branching pipe shown in the figure below with uniform velocity at each inlet and outlet. The fixed control volume indicated coincides with the system at time t = 20 s. Calculate (a) the volume transported between t = 20 and t = 20.1 sec across outlet if inlet diameters at (1) and (2) are 1.0 m and 2.0 m respectively. (b) Determine the outlet diameter. V₁ =2.5m/s Show Attempt History (a) Vol = (b) D3 = i i 1.02 2.28 V3 = 2.5 m/s m 3 m (3) Control volume 0.8 m 0.6 m 0.5 m L3 (1) (2) FILL = 1.5m/s
