Problem 1 A simply supported beam with cross section as shown below is loaded as shown. = 0.2 m, b = 0.1 m and the value

Post by answerhappygod »

Problem 1 A Simply Supported Beam With Cross Section As Shown Below Is Loaded As Shown 0 2 M B 0 1 M And The Value 1
Problem 1 A Simply Supported Beam With Cross Section As Shown Below Is Loaded As Shown 0 2 M B 0 1 M And The Value 1 (149.37 KiB) Viewed 34 times

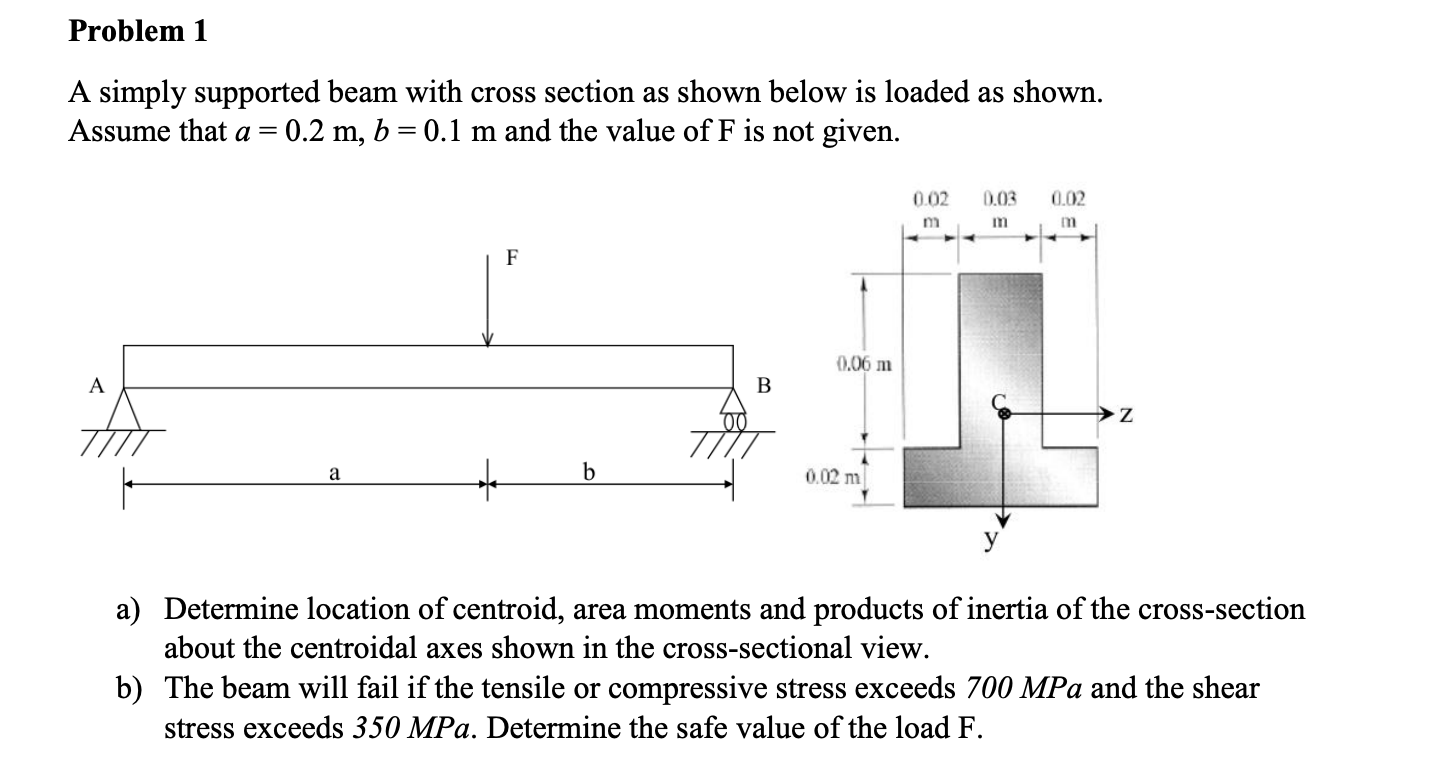

Problem 1 A simply supported beam with cross section as shown below is loaded as shown. = 0.2 m, b = 0.1 m and the value of F is not given. - Assume that a A F a F b B 0.06 m 0.02 m 0.02 m 0.03 0.02 m m Z a) Determine location of centroid, area moments and products of inertia of the cross-section about the centroidal axes shown in the cross-sectional view. b) The beam will fail if the tensile or compressive stress exceeds 700 MPa and the shear stress exceeds 350 MPa. Determine the safe value of the load F.
