Question 5 (16 points) Q3. The beam is supported by a pin at point A and rollers at point B and point C. It is subjected

[answerhappygod]

Question 5 16 Points Q3 The Beam Is Supported By A Pin At Point A And Rollers At Point B And Point C It Is Subjected 1 (74.37 KiB) Viewed 23 times

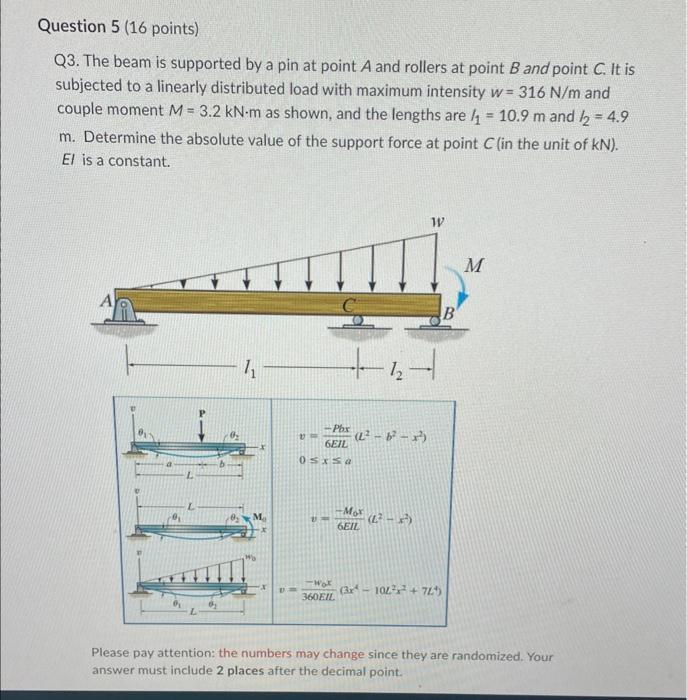

Question 5 (16 points) Q3. The beam is supported by a pin at point A and rollers at point B and point C. It is subjected to a linearly distributed load with maximum intensity w = 316 N/m and couple moment M = 3.2 kN-m as shown, and the lengths are ₁ = 10.9 m and /2 = 4.9 m. Determine the absolute value of the support force at point C (in the unit of kN). El is a constant. L 4₁ M₂ 14/0 -Phx 6EIL 05x50 VI -Wat 360EIL +12-1 (2²-b²-x²) -Mox 6EIL W (²-3) B (3x102x + 765) M Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point.
