5. (a) During a thermodynamic cycle gas undergoes three different processes beginning at an initial state where pr-1.5 b

[answerhappygod]

5 A During A Thermodynamic Cycle Gas Undergoes Three Different Processes Beginning At An Initial State Where Pr 1 5 B 1 (88.99 KiB) Viewed 31 times

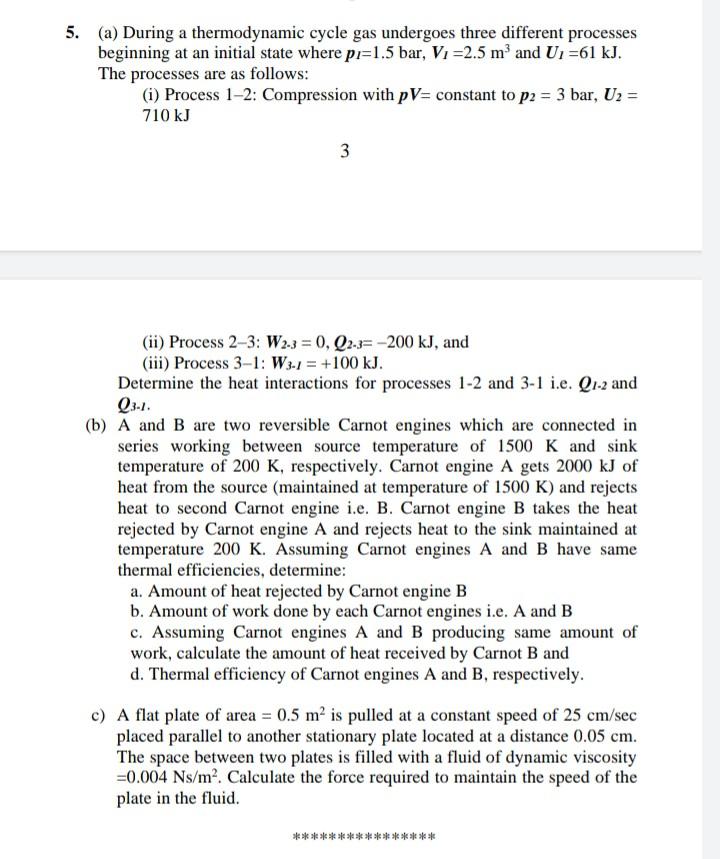

5. (a) During a thermodynamic cycle gas undergoes three different processes beginning at an initial state where pr-1.5 bar, V₁ =2.5 m³ and U₁=61 kJ. The processes are as follows: (i) Process 1-2: Compression with pV= constant to p2 = 3 bar, U₂ = 710 kJ 3 (ii) Process 2-3: W2-3 = 0, Q2-3-200 kJ, and (iii) Process 3-1: W3-1 = +100 kJ. Determine the heat interactions for processes 1-2 and 3-1 i.e. Q1-2 and Q3-1. (b) A and B are two reversible Carnot engines which are connected in series working between source temperature of 1500 K and sink temperature of 200 K, respectively. Carnot engine A gets 2000 kJ of heat from the source (maintained at temperature of 1500 K) and rejects heat to second Carnot engine i.e. B. Carnot engine B takes the heat rejected by Carnot engine A and rejects heat to the sink maintained at temperature 200 K. Assuming Carnot engines A and B have same thermal efficiencies, determine: a. Amount of heat rejected by Carnot engine B b. Amount of work done by each Carnot engines i.e. A and B c. Assuming Carnot engines A and B producing same amount of work, calculate the amount of heat received by Carnot B and d. Thermal efficiency of Carnot engines A and B, respectively. c) A flat plate of area = 0.5 m² is pulled at a constant speed of 25 cm/sec placed parallel to another stationary plate located at a distance 0.05 cm. The space between two plates is filled with a fluid of dynamic viscosity =0.004 Ns/m². Calculate the force required to maintain the speed of the plate in the fluid. ****
