1. Draw FBD of the beam and determine the Reactions at B and D. 2. Calculate the Maximum Tensile Stress at "C". 3. Calcu

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

1. Draw FBD of the beam and determine the Reactions at B and D. 2. Calculate the Maximum Tensile Stress at "C". 3. Calcu

Post by answerhappygod »

1 Draw Fbd Of The Beam And Determine The Reactions At B And D 2 Calculate The Maximum Tensile Stress At C 3 Calcu 1
1 Draw Fbd Of The Beam And Determine The Reactions At B And D 2 Calculate The Maximum Tensile Stress At C 3 Calcu 1 (88.56 KiB) Viewed 29 times

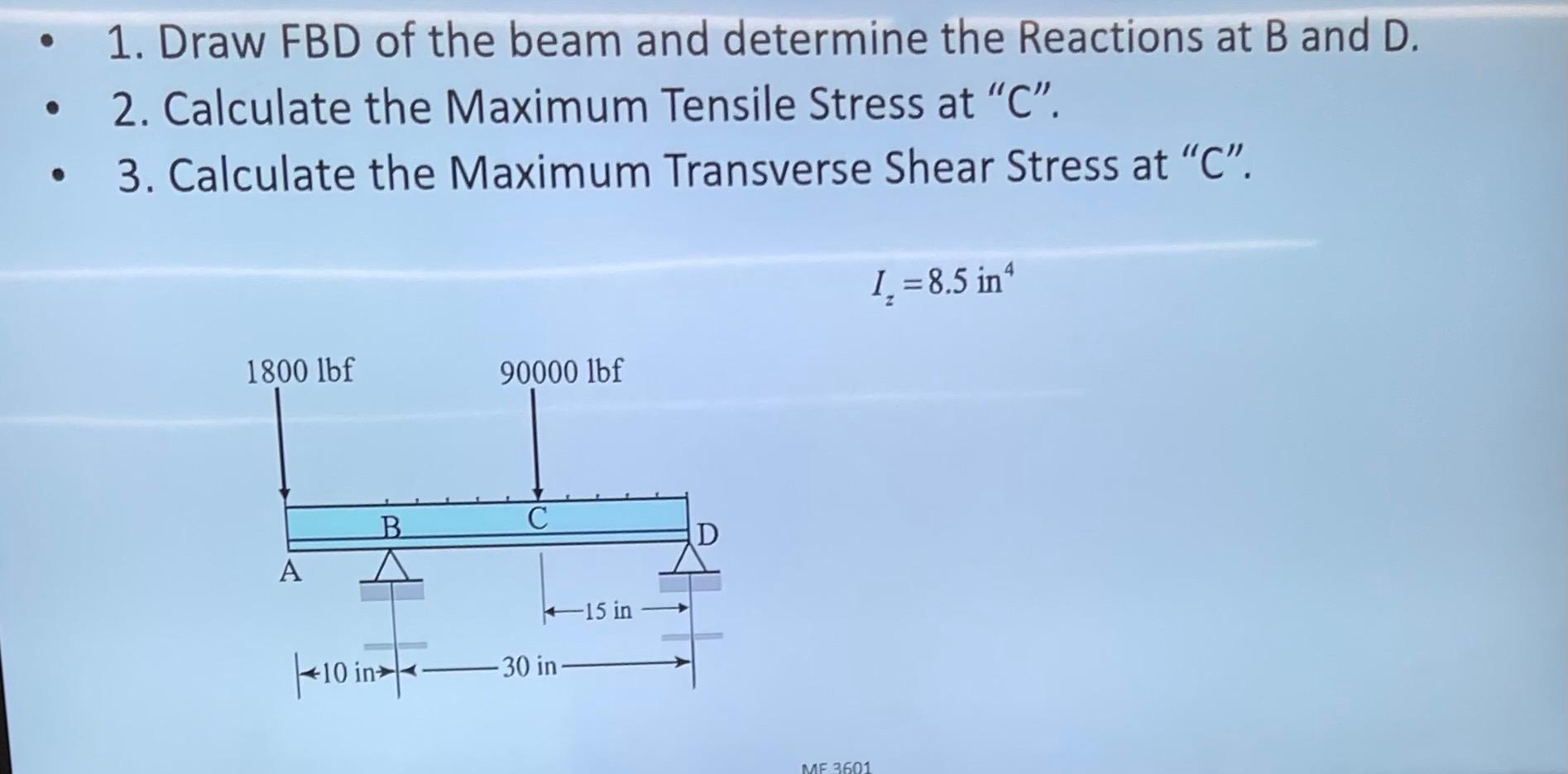

1. Draw FBD of the beam and determine the Reactions at B and D. 2. Calculate the Maximum Tensile Stress at "C". 3. Calculate the Maximum Transverse Shear Stress at "C". 1800 lbf A B 10 in- — 90000 lbf с -30 in -15 in - D 1₂ = 8.5 in 4 MF 3601
