The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied

[answerhappygod]

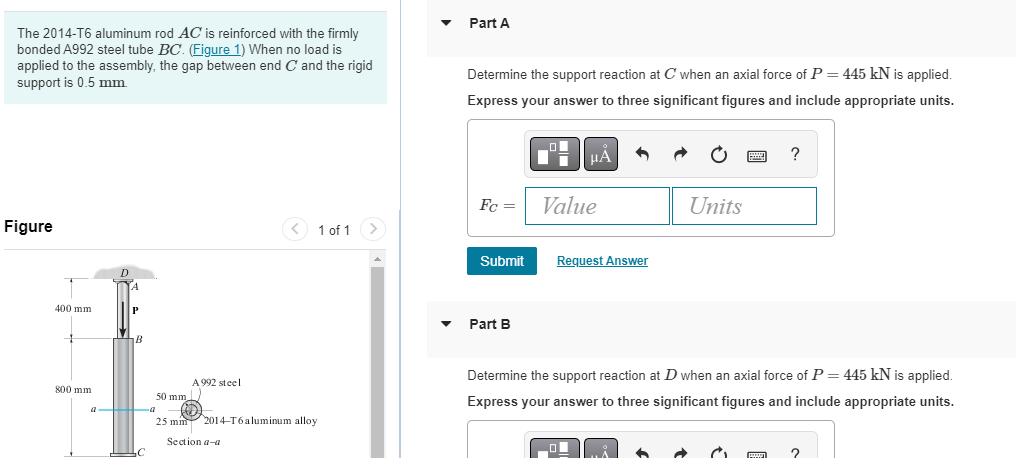

The 2014 T6 Aluminum Rod Ac Is Reinforced With The Firmly Bonded A992 Steel Tube Bc Figure 1 When No Load Is Applied 1 (44.19 KiB) Viewed 26 times

The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end C and the rigid support is 0.5 mm. Figure 400 mm H 800 mm a D TA P B A 992 steel 50 mm / 25 mm 2014-T6 aluminum alloy Section a-a 1 of 1 Part A Determine the support reaction at C when an axial force of P = 445 kN is applied. Express your answer to three significant figures and include appropriate units. Fc = Submit Part B μA Value Request Answer Units 6 a Determine the support reaction at D when an axial force of P = 445 kN is applied. Express your answer to three significant figures and include appropriate units. ? Ĉ 2
