QUESTION 3: Explain the diagram below. (25 mark) GROUND CHARGING PORT SAFETY DISC MOISTURE SEPARATOR DESSICCANT CHECK VA

[answerhappygod]

Question 3 Explain The Diagram Below 25 Mark Ground Charging Port Safety Disc Moisture Separator Dessiccant Check Va 1 (59.48 KiB) Viewed 25 times

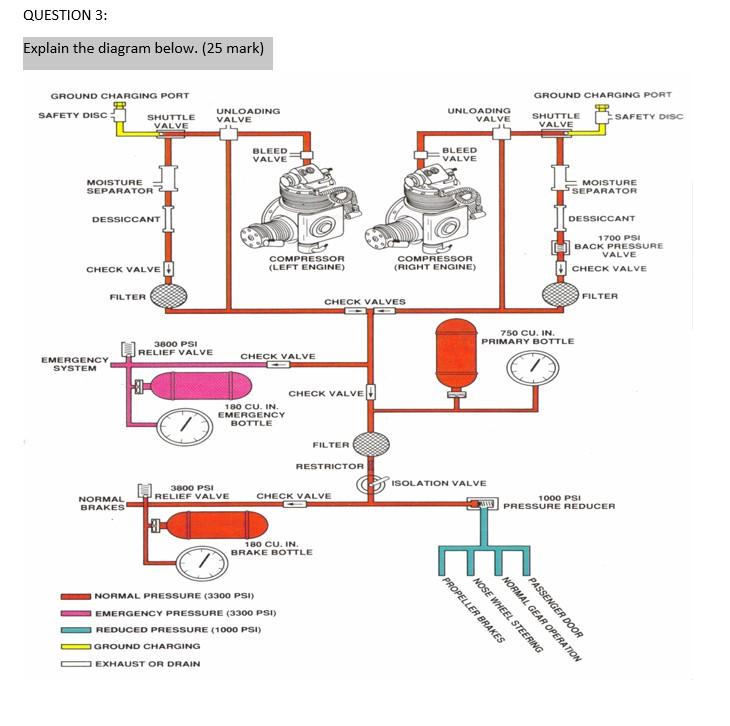

QUESTION 3: Explain the diagram below. (25 mark) GROUND CHARGING PORT SAFETY DISC MOISTURE SEPARATOR DESSICCANT CHECK VALVE EMERGENCY SYSTEM SHUTTLE VALVE FILTER NORMAL, BRAKES 3800 PSI RELIEF VALVE HI UNLOADING VALVE HI 3800 PSI RELIEF VALVE BLEED VALVE COMPRESSOR (LEFT ENGINE) CHECK VALVE 180 CU. IN. EMERGENCY BOTTLE CHECK VALVE NORMAL PRESSURE (3300 PSI) EMERGENCY PRESSURE (3300 PSI) REDUCED PRESSURE (1000 PSI) GROUND CHARGING EXHAUST OR DRAIN 180 CU. IN. BRAKE BOTTLE CHECK VALVES FILTER RESTRICTOR CHECK VALVE UNLOADING VALVE BLEED VALVE COMPRESSOR (RIGHT ENGINE) ISOLATION VALVE GROUND CHARGING PORT SHUTTLE VALVE PROPELLER BRAKES NOSE WHEEL STEERING NORMAL GEAR OPERATION PASSENGER DOOR 750 CU. IN. PRIMARY BOTTLE PRESSURE MOISTURE SEPARATOR SAFETY DISC DESSICCANT 1700 PSI BACK PRESSURE VALVE CHECK VALVE 1000 PSI FILTER REDUCER
