QUESTION 1: a. Briefly explain the picture below regarding the O ring seal type and what need to be done if the pressure

Post by answerhappygod »

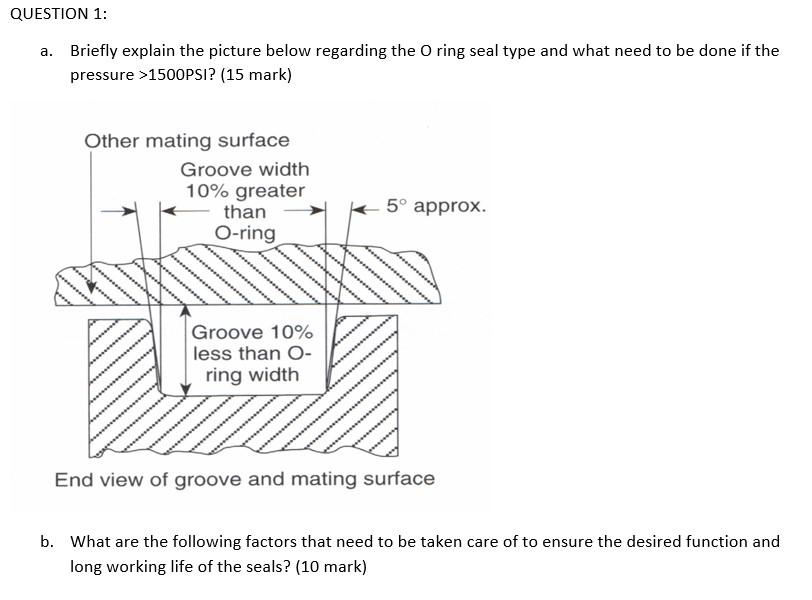

Question 1 A Briefly Explain The Picture Below Regarding The O Ring Seal Type And What Need To Be Done If The Pressure 1
Question 1 A Briefly Explain The Picture Below Regarding The O Ring Seal Type And What Need To Be Done If The Pressure 1 (50.67 KiB) Viewed 33 times
QUESTION 1: a. Briefly explain the picture below regarding the O ring seal type and what need to be done if the pressure >1500PSI? (15 mark) Other mating surface Groove width 10% greater than O-ring Groove 10% less than O- ring width 5° approx. End view of groove and mating surface b. What are the following factors that need to be taken care of to ensure the desired function and long working life of the seals? (10 mark)
