- The Inverted Slider Crank Mechanism Is Used For Problem 1 And 2 00 10 Rad S L 1 00 In L4 4 76 Lg 4 55 02 0402 1 6 1 (26.88 KiB) Viewed 42 times

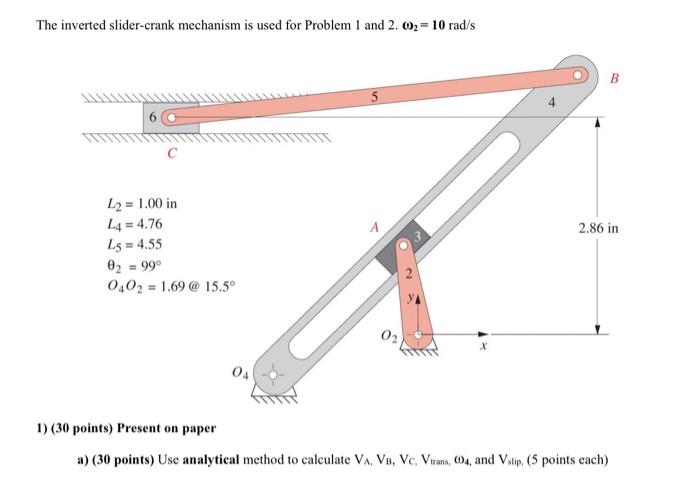

The inverted slider-crank mechanism is used for Problem 1 and 2.00₂ = 10 rad/s L₂=1.00 in L4 = 4.76 Lg= 4.55 02 0402 1.6
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The inverted slider-crank mechanism is used for Problem 1 and 2.00₂ = 10 rad/s L₂=1.00 in L4 = 4.76 Lg= 4.55 02 0402 1.6
The inverted slider-crank mechanism is used for Problem 1 and 2.00₂ = 10 rad/s L₂=1.00 in L4 = 4.76 Lg= 4.55 02 0402 1.69 @ 15.5⁰ = 99⁰ 5 B 2.86 in 1) (30 points) Present on paper a) (30 points) Use analytical method to calculate VA, VB, Vc, Virans, 004, and Valip. (5 points each)
