of 2 Consider a large plane wall of thickness L = 0.8 ft and thermal conductivity k=1.2 Btu/h-ft-°F. The wall is covered

[answerhappygod]

Of 2 Consider A Large Plane Wall Of Thickness L 0 8 Ft And Thermal Conductivity K 1 2 Btu H Ft F The Wall Is Covered 1 (49.8 KiB) Viewed 32 times

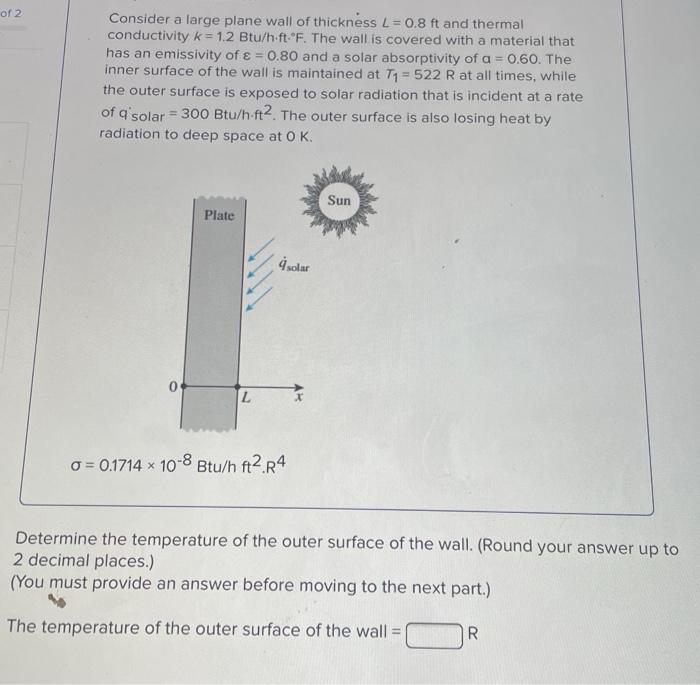

of 2 Consider a large plane wall of thickness L = 0.8 ft and thermal conductivity k=1.2 Btu/h-ft-°F. The wall is covered with a material that has an emissivity of ε = 0.80 and a solar absorptivity of a = 0.60. The inner surface of the wall is maintained at T₁= 522 R at all times, while the outer surface is exposed to solar radiation that is incident at a rate of q'solar = 300 Btu/h-ft2. The outer surface is also losing heat by radiation to deep space at OK. Plate L o= 0.1714 x 10-8 B à solar 8 Btu/h ft2.R4 Sun Determine the temperature of the outer surface of the wall. (Round your answer up to 2 decimal places.) (You must provide an answer before moving to the next part.) The temperature of the outer surface of the wall: R
