4 M 3 M Figure Q1 D M D Figure Q1 D Shows A Compound Channel Section With Bottom Slope Of 0 0040 And Side Slope Of 1 (8.3 KiB) Viewed 31 times
4 M 3 M Figure Q1 D M D Figure Q1 D Shows A Compound Channel Section With Bottom Slope Of 0 0040 And Side Slope Of 2 (16.09 KiB) Viewed 31 times

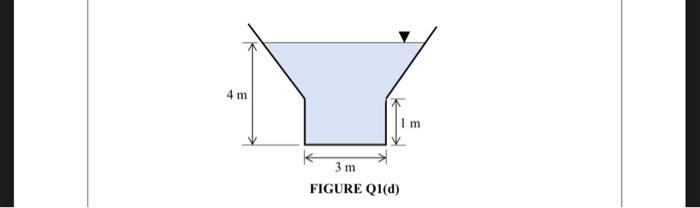

4 m 3 m FIGURE Q1(d) m

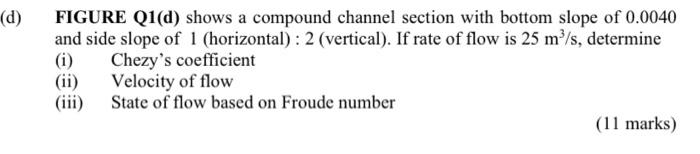

(d) FIGURE Q1(d) shows a compound channel section with bottom slope of 0.0040 and side slope of 1 (horizontal): 2 (vertical). If rate of flow is 25 m³/s, determine (i) (ii) (iii) Chezy's coefficient Velocity of flow State of flow based on Froude number (11 marks)
