If the collar at C is moving downward to the left at v_C = 8 m/s constant and rod BC is horizontal at the instant shown

Post by answerhappygod »

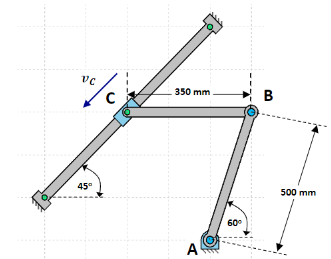

If the collar at C is moving downward to theleft at v_C = 8 m/s constant and rod BC ishorizontal at the instant shown in thefigure, determine:a. the velocity of point B,b. the angular velocity of link AB,c. the acceleration of point B, andd. the angular acceleration of link AB.
If The Collar At C Is Moving Downward To The Left At V C 8 M S Constant And Rod Bc Is Horizontal At The Instant Shown 1
If The Collar At C Is Moving Downward To The Left At V C 8 M S Constant And Rod Bc Is Horizontal At The Instant Shown 1 (21.91 KiB) Viewed 24 times
