Consider a large plane wall of thickness L=0.4 m, thermal conductivity k = 2.3 W/m-K, and surface area A=28 m². The left

[answerhappygod]

Consider A Large Plane Wall Of Thickness L 0 4 M Thermal Conductivity K 2 3 W M K And Surface Area A 28 M The Left 1 (26.82 KiB) Viewed 28 times

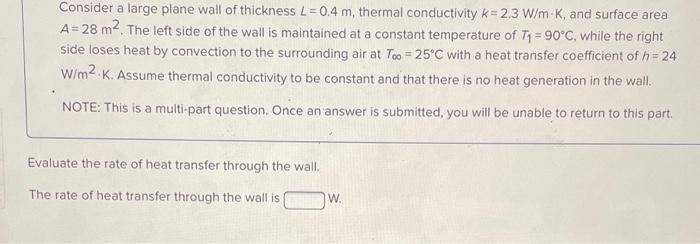

Consider a large plane wall of thickness L=0.4 m, thermal conductivity k = 2.3 W/m-K, and surface area A=28 m². The left side of the wall is maintained at a constant temperature of T₁ = 90°C, while the right side loses heat by convection to the surrounding air at Too = 25°C with a heat transfer coefficient of h=24 W/m2.K. Assume thermal conductivity to be constant and that there is no heat generation in the wall. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Evaluate the rate of heat transfer through the wall. The rate of heat transfer through the wall is W.
