The system is constructed of a material with 𝐸 = 18 × 10 ^3 𝑘𝑠𝑖 and a yield stress of 5ksi. If FS=2.5 is considered for

Post by answerhappygod »

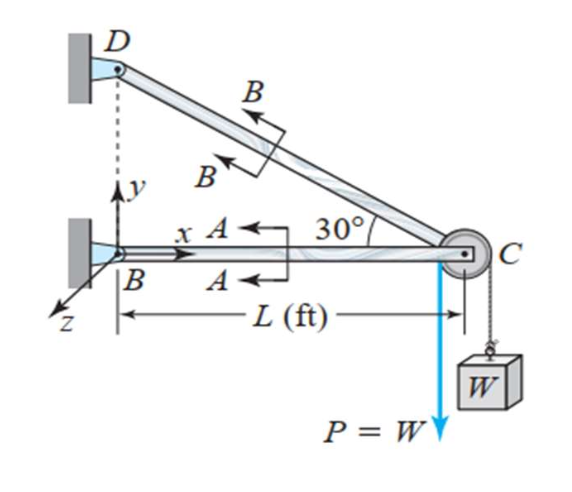

The system is constructed of a material with 𝐸 = 18 × 10 ^3 𝑘𝑠𝑖and a yield stress of 5ksi. If FS=2.5 is considered for bothtension and buckling, what is the maximum load W that can beapplied to the system? L=30in(Note: consider 2W at pulley C and analyze both the buckling andthe tensile effect of the system)
The System Is Constructed Of A Material With E 18 10 3 Ksi And A Yield Stress Of 5ksi If Fs 2 5 Is Considered For 1
The System Is Constructed Of A Material With E 18 10 3 Ksi And A Yield Stress Of 5ksi If Fs 2 5 Is Considered For 1 (118.57 KiB) Viewed 37 times
B B B 30° - L (ft) P = WY W
Z Sección AA 4 in 5 in Sección BB
