3. For the given data calculate the end-effector position (xg. Yg) and orientation () of the 3RPR manipulator shown in t

Post by answerhappygod »

3 For The Given Data Calculate The End Effector Position Xg Yg And Orientation Of The 3rpr Manipulator Shown In T 1
3 For The Given Data Calculate The End Effector Position Xg Yg And Orientation Of The 3rpr Manipulator Shown In T 1 (22.91 KiB) Viewed 21 times

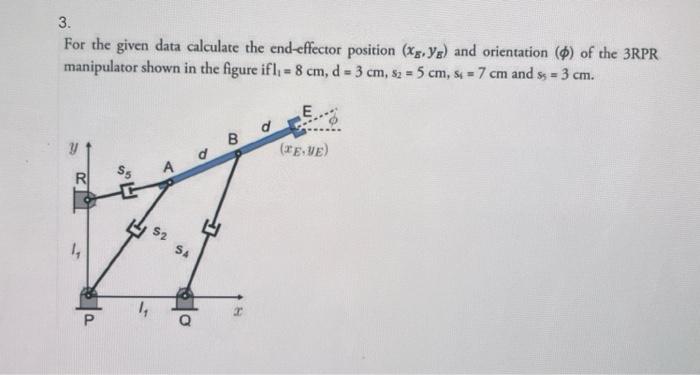

3. For the given data calculate the end-effector position (xg. Yg) and orientation () of the 3RPR manipulator shown in the figure ifl, = 8 cm, d = 3 cm, s2 = 5 cm, s = 7 cm and ss = 3 cm. 1₁ A $2 SA d d B E (*E-VE)
