Problem 1 (2 points): For the following structure: a) Draw Shear and Moment Diagrams, and determine the maximum moment b

[answerhappygod]

Problem 1 2 Points For The Following Structure A Draw Shear And Moment Diagrams And Determine The Maximum Moment B 1 (69.72 KiB) Viewed 30 times

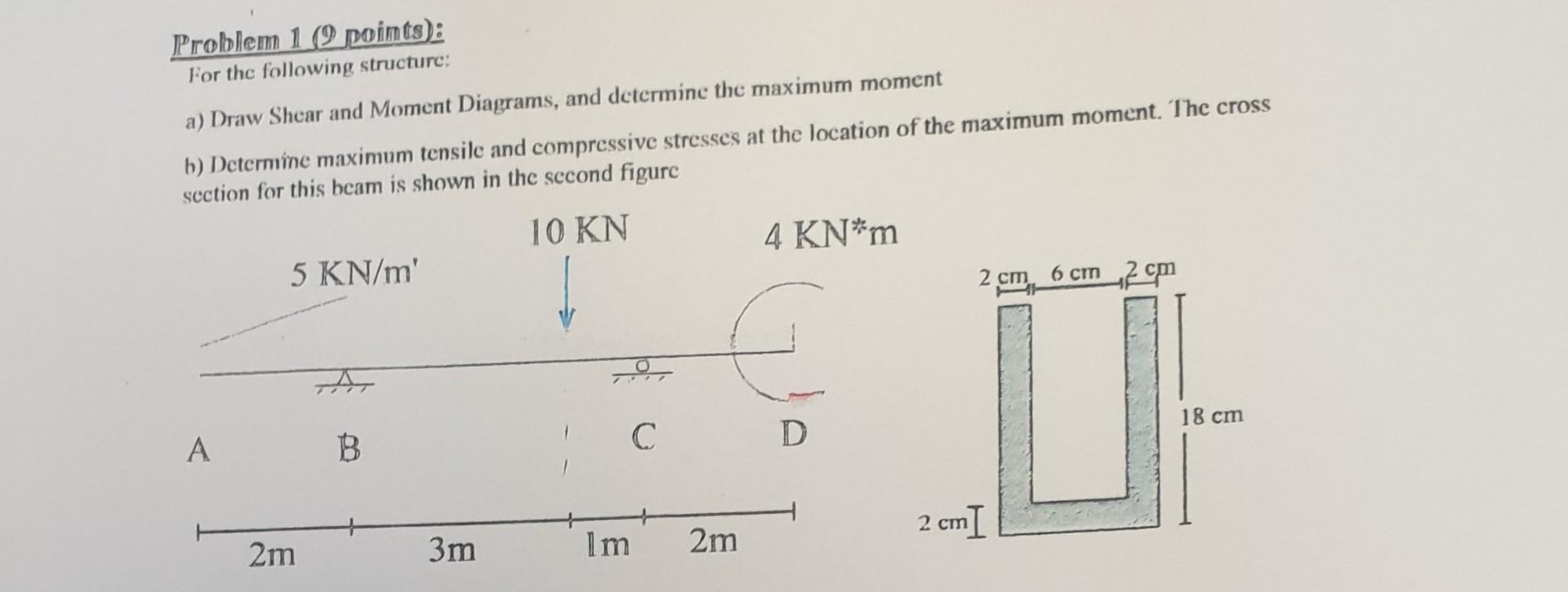

Problem 1 (2 points): For the following structure: a) Draw Shear and Moment Diagrams, and determine the maximum moment b) Determine maximum tensile and compressive stresses at the location of the maximum moment. The cross section for this beam is shown in the second figure 10 KN A 5 KN/m' 2m B 3m C Im 2m 4 KN*m E D 2 cm 60 5 cm 2 cm 2 cm] 18 cm
