A rectangular fin made of Molybdenum is protruding from a surface that is at a temperature 125°C. The bulk temperature a

Post by answerhappygod »

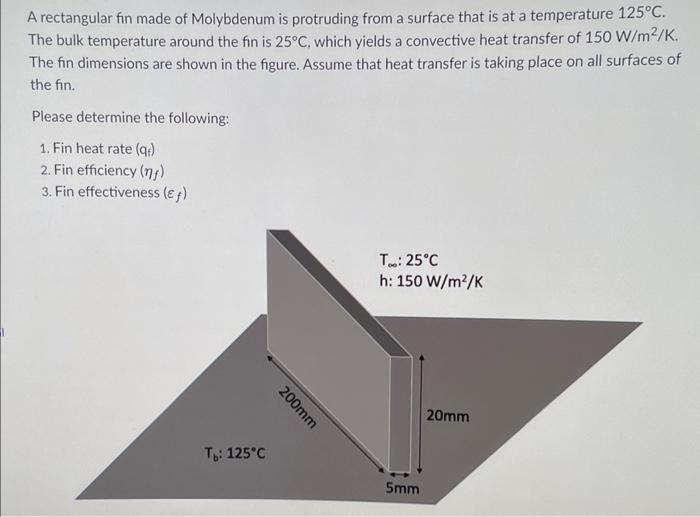

A Rectangular Fin Made Of Molybdenum Is Protruding From A Surface That Is At A Temperature 125 C The Bulk Temperature A 1
A Rectangular Fin Made Of Molybdenum Is Protruding From A Surface That Is At A Temperature 125 C The Bulk Temperature A 1 (31.92 KiB) Viewed 33 times
A rectangular fin made of Molybdenum is protruding from a surface that is at a temperature 125°C. The bulk temperature around the fin is 25°C, which yields a convective heat transfer of 150 W/m²/K. The fin dimensions are shown in the figure. Assume that heat transfer is taking place on all surfaces of the fin. Please determine the following: 1. Fin heat rate (q) 2. Fin efficiency (n) 3. Fin effectiveness (ef) Tb: 125°C 200mm T.: 25°C h: 150 W/m²/K 5mm 20mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
