1.2 A pipe junction (Figure 2) must be kept in position by a support. Determine the magnitude and direction of the requi

[answerhappygod]

1 2 A Pipe Junction Figure 2 Must Be Kept In Position By A Support Determine The Magnitude And Direction Of The Requi 1 (25.43 KiB) Viewed 31 times

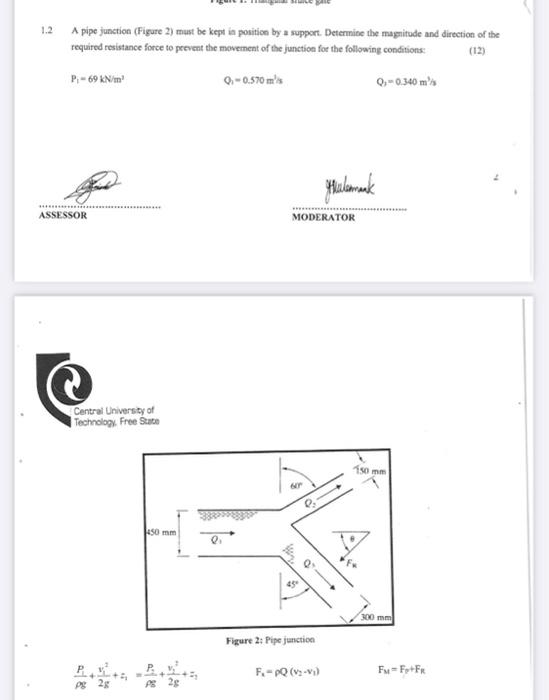

1.2 A pipe junction (Figure 2) must be kept in position by a support. Determine the magnitude and direction of the required resistance force to prevent the movement of the junction for the following conditions: (12) P₁-69 kN/m² ASSESSOR Central University of Technology, Free State pg 2g 450 mm PB 2g Q,-0.570 m/s MODERATOR WP 45⁰ e₂ gulamak 111 Q-0.340 m Figure 2: Pipe junction F₁-pQ (V₂-V₁) 150 mm 300 mm FM-Fp+FR
