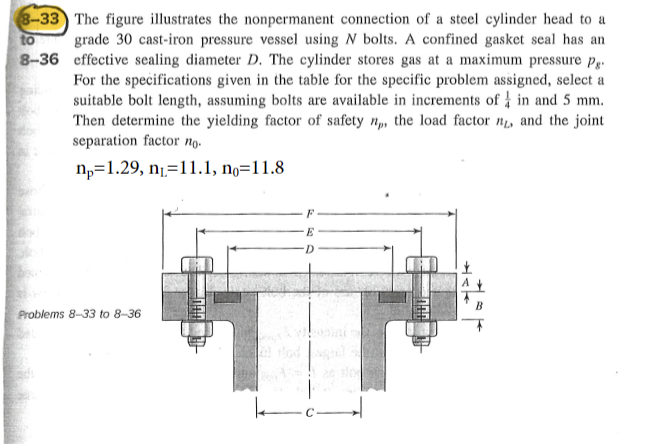

8-36 8-33 The figure illustrates the nonpermanent connection of a steel cylinder head to a to grade 30 cast-iron pressure vessel using N bolts. A confined gasket seal has an effective sealing diameter D. The cylinder stores gas at a maximum pressure pg. For the specifications given in the table for the specific problem assigned, select a suitable bolt length, assuming bolts are available in increments of in and 5 mm. Then determine the yielding factor of safety n, the load factor n, and the joint separation factor no. np 1.29, n₁-11.1, no=11.8 Problems 8-33 to 8-36 k F E D
Problem Number A B C D F N Ps Bolt grade Bolt spec. 8-33 20 mm 20 mm 60 mm 100 mm 200 mm 300 mm 10 6 MPa ISO 9.8 M12 x 1.75
