Q-3. A 12-gauge a spring that support a load F = 3 lbf. The inside radius of the bend is shown to be 1/8 in. a. Use curv

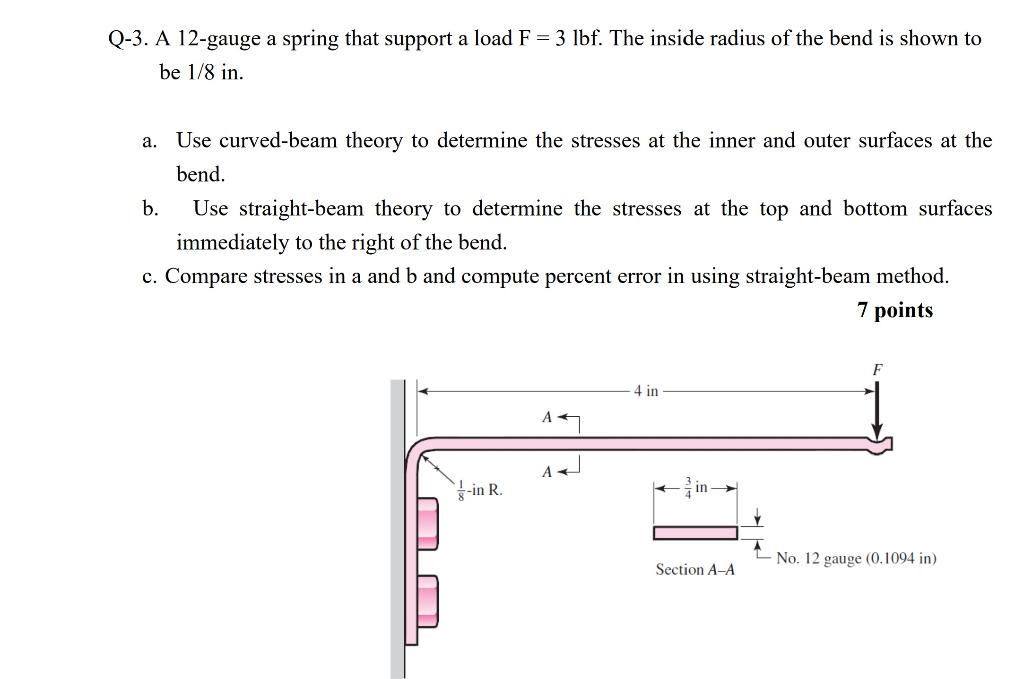

Q-3. A 12-gauge a spring that support a load F = 3 lbf. The inside radius of the bend is shown to be 1/8 in. a. Use curved-beam theory to determine the stresses at the inner and outer surfaces at the bend. b. Use straight-beam theory to determine the stresses at the top and bottom surfaces immediately to the right of the bend. c. Compare stresses in a and b and compute percent error in using straight-beam method. 7 points F 4 in -in R. No. 12 gauge (0.1094 in) Section A-A
