2. For the mechanism shown below. (A) (23 points) Use the method of velocity vector polygons to calculate w3. Report its

Post by answerhappygod »

2 For The Mechanism Shown Below A 23 Points Use The Method Of Velocity Vector Polygons To Calculate W3 Report Its 1
2 For The Mechanism Shown Below A 23 Points Use The Method Of Velocity Vector Polygons To Calculate W3 Report Its 1 (76.69 KiB) Viewed 29 times

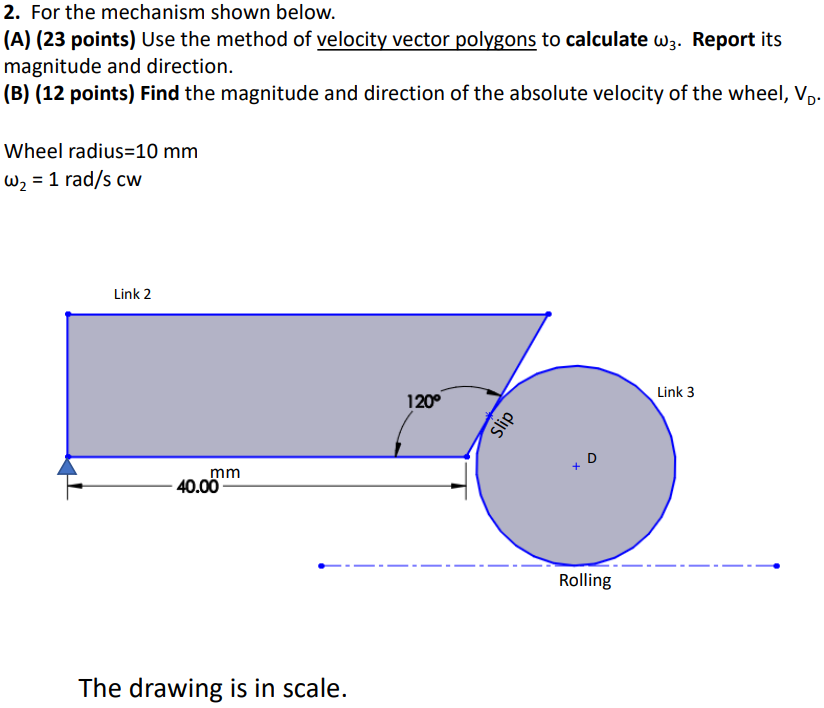

2. For the mechanism shown below. (A) (23 points) Use the method of velocity vector polygons to calculate w3. Report its magnitude and direction. (B) (12 points) Find the magnitude and direction of the absolute velocity of the wheel, VD. Wheel radius=10 mm W₂ = 1 rad/s cw Link 2 mm 40.00 The drawing is in scale. 120° Slip D Rolling Link 3
