Two L4 x 4-in angles are welded to a steel plate as shown in the figure, where h=18 in. Determine the moments of inertia

Post by answerhappygod »

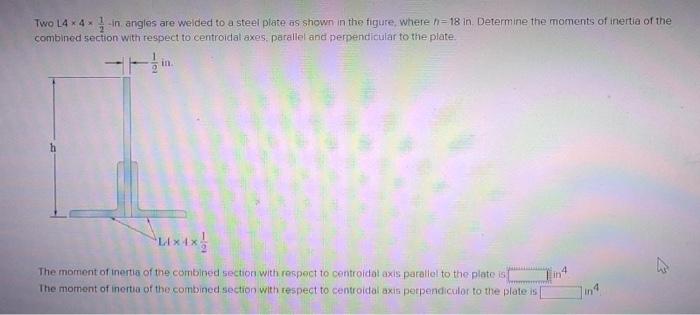

Two L4 X 4 In Angles Are Welded To A Steel Plate As Shown In The Figure Where H 18 In Determine The Moments Of Inertia 1
Two L4 X 4 In Angles Are Welded To A Steel Plate As Shown In The Figure Where H 18 In Determine The Moments Of Inertia 1 (25.29 KiB) Viewed 28 times
Two L4 x 4-in angles are welded to a steel plate as shown in the figure, where h=18 in. Determine the moments of inertia of the combined section with respect to centroidal axes, parallel and perpendicular to the plate. in. The moment of inertia of the combined section with respect to centroidal axis parallel to the plate is The moment of inertia of the combined section with respect to centroidal axis perpendiculor to the plate is Tin In
