High-pressure hot water and low-pressure cold water enter the heat exchanger in figure 2.1 at states 1 and 3 respectivel

[answerhappygod]

High Pressure Hot Water And Low Pressure Cold Water Enter The Heat Exchanger In Figure 2 1 At States 1 And 3 Respectivel 1 (48.73 KiB) Viewed 32 times

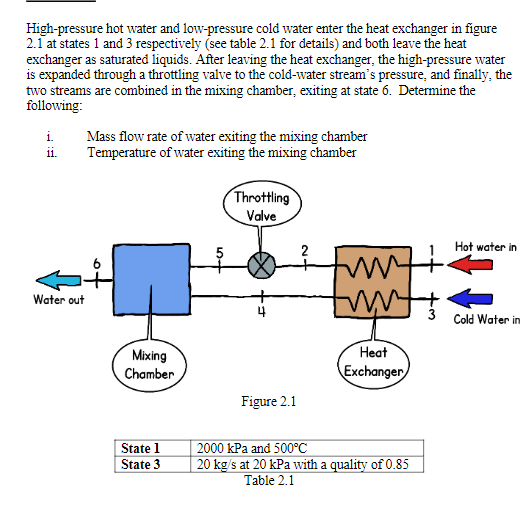

High-pressure hot water and low-pressure cold water enter the heat exchanger in figure 2.1 at states 1 and 3 respectively (see table 2.1 for details) and both leave the heat exchanger as saturated liquids. After leaving the heat exchanger, the high-pressure water is expanded through a throttling valve to the cold-water stream's pressure, and finally, the two streams are combined in the mixing chamber, exiting at state 6. Determine the following: i. ii. Water out Mass flow rate of water exiting the mixing chamber Temperature of water exiting the mixing chamber Mixing Chamber State 1 State 3 Throttling Valve Figure 2.1 +N ww twirt ? 3 Heat Exchanger 2000 kPa and 500°C 20 kg/s at 20 kPa with a quality of 0.85 Table 2.1 Hot water in Cold Water in
