4.16 For the circuit shown in Figure P4.16, write the modeling equations and derive the transfer function for e, as a fu

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

4.16 For the circuit shown in Figure P4.16, write the modeling equations and derive the transfer function for e, as a fu

Post by answerhappygod »

4 16 For The Circuit Shown In Figure P4 16 Write The Modeling Equations And Derive The Transfer Function For E As A Fu 1
4 16 For The Circuit Shown In Figure P4 16 Write The Modeling Equations And Derive The Transfer Function For E As A Fu 1 (19.79 KiB) Viewed 32 times

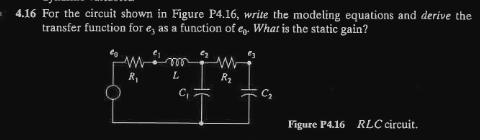

4.16 For the circuit shown in Figure P4.16, write the modeling equations and derive the transfer function for e, as a function of e. What is the static gain? moo L R₂ Figure P4.16 RLC circuit.
