Question 1 (2.5 points) (a) (b) (c) (d) (e) Schematics in the figure above shows typical failure modes in the shear load

Post by answerhappygod »

Question 1 2 5 Points A B C D E Schematics In The Figure Above Shows Typical Failure Modes In The Shear Load 1
Question 1 2 5 Points A B C D E Schematics In The Figure Above Shows Typical Failure Modes In The Shear Load 1 (133.23 KiB) Viewed 34 times

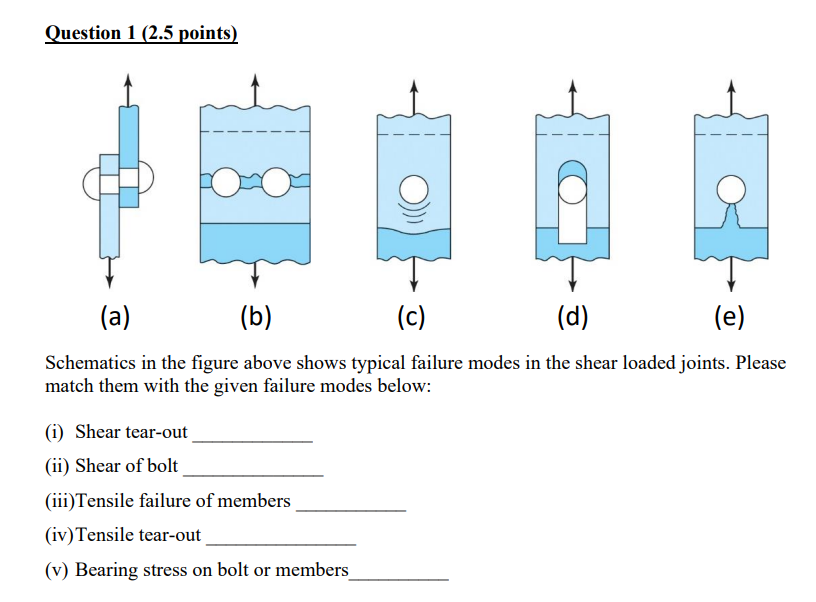

Question 1 (2.5 points) (a) (b) (c) (d) (e) Schematics in the figure above shows typical failure modes in the shear loaded joints. Please match them with the given failure modes below: (i) Shear tear-out (ii) Shear of bolt (iii) Tensile failure of members (iv) Tensile tear-out (v) Bearing stress on bolt or members
