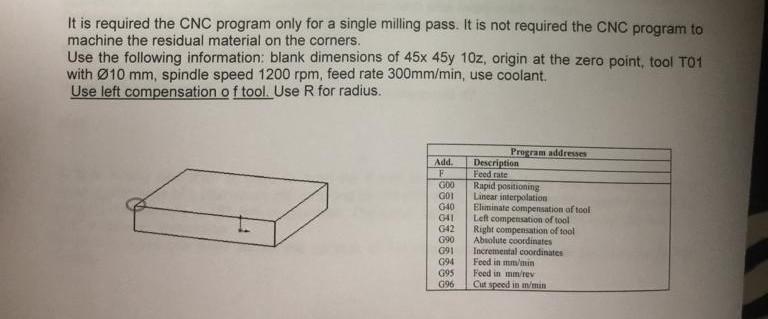

It is required the CNC program only for a single milling pass. It is not required the CNC program to machine the residual material on the corners. Use the following information: blank dimensions of 45x 45y 10z, origin at the zero point, tool T01 with Ø10 mm, spindle speed 1200 rpm, feed rate 300mm/min, use coolant. Use left compensation of tool. Use R for radius. Add. E GOO GOI G40 G41 G42 G90 G91 G94 G95 G96 Program addresses Description Feed rate Rapid positioning Linear interpolation Eliminate compensation of tool Left compensation of tool Right compensati of tool Absolute coordinates Incremental coordinates Feed in mm/min Feed in mm/rev Cut speed in m/min
2.00 14,00 6.00 12.00 5.00 5 5,00 2,00 4.00 85.00 16 R10,00 45,00 G97 M03 M04 M05 M06 MOS M09 M30 S R T Cut speed in rpm Clockwise rotation of the spindle Counter-clockwise rotation of the spindle Spindle off Tool change Coolant on Coolant off End of the program Cut speed Radius Tool name 5.00 5.00
