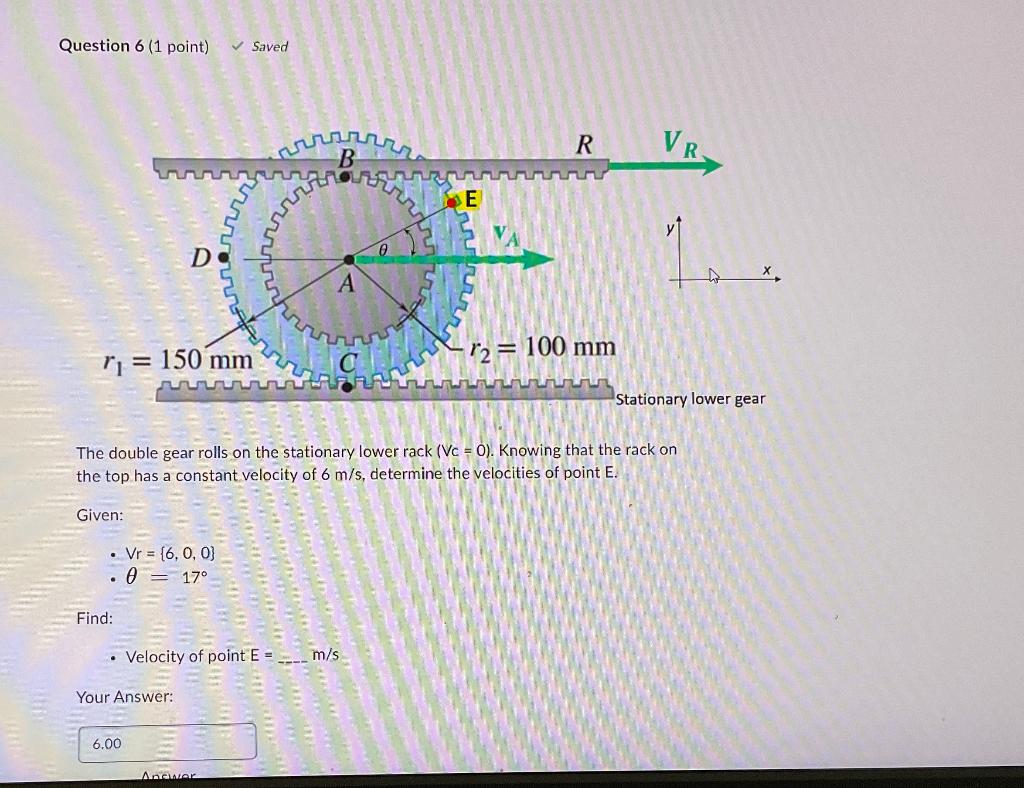

Question 6 1 Point Saved R 150 Mm Given D Vr 6 0 0 0 17 Find Velocity Of Point E Your Answer 1 (116.77 KiB) Viewed 26 times
PLease take your time and make sure the answer is correct.You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions. Question 6 (1 point) ✓ Saved r₁ = 150 mm Given: D . Vr = {6, 0, 0) . 0 = 17° Find: • Velocity of point E = Your Answer: 6.00 www Answer B a The double gear rolls on the stationary lower rack (Vc = 0). Knowing that the rack on the top has a constant velocity of 6 m/s, determine the velocities of point E. A E m/s R 12 = 100 mm VR 4 X, Stationary lower gear
