Question 8 (12 points) Q5(2). The bent solid rod with a diameter of 3 in. is fixed-support at point A. The length is /=

[answerhappygod]

Question 8 12 Points Q5 2 The Bent Solid Rod With A Diameter Of 3 In Is Fixed Support At Point A The Length Is 1 (103.9 KiB) Viewed 31 times

PLease take your time and make sure the answer is correct.You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions.

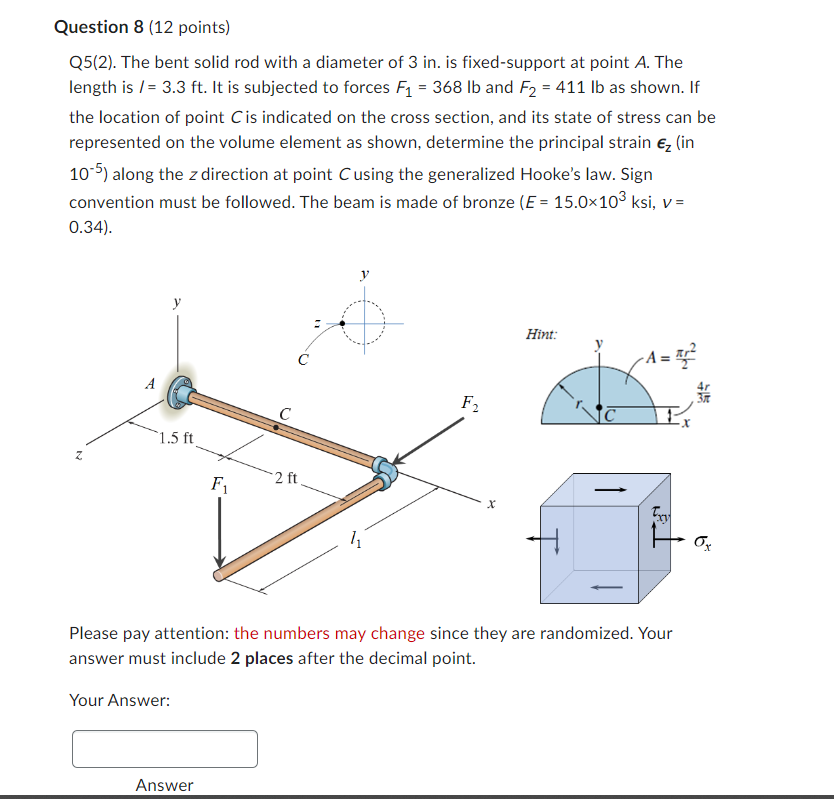

Question 8 (12 points) Q5(2). The bent solid rod with a diameter of 3 in. is fixed-support at point A. The length is /= 3.3 ft. It is subjected to forces F₁ = 368 lb and F₂ = 411 lb as shown. If the location of point Cis indicated on the cross section, and its state of stress can be represented on the volume element as shown, determine the principal strain €₂ (in 10-5) along the z direction at point Cusing the generalized Hooke's law. Sign convention must be followed. The beam is made of bronze (E = 15.0×10³ ksi, v = 0.34). A y 1.5 ft Your Answer: F₁ Answer с C 2 ft y 4 F₂ X Hint: II Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Ex $5 6x
