Question 6 16 Points Q4 The Pin Connected Frame Is Subjected To The Force Fas Shown The Dimensions Are 4 1 M 1 (76.13 KiB) Viewed 25 times

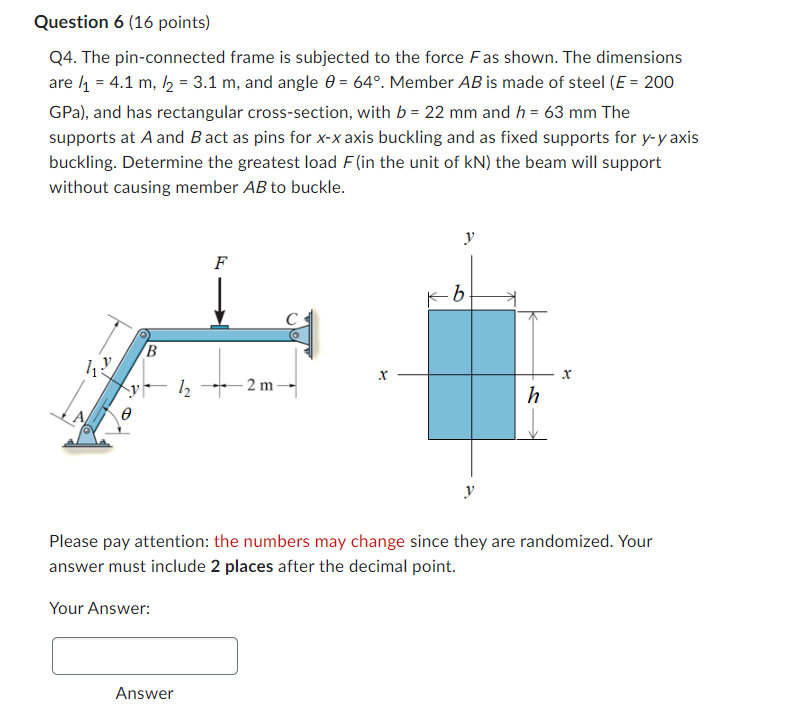

PLease take your time and make sure the answer is correct.You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions. Question 6 (16 points) Q4. The pin-connected frame is subjected to the force Fas shown. The dimensions are /₁ = 4.1 m, /2 = 3.1 m, and angle = 64°. Member AB is made of steel (E = 200 GPa), and has rectangular cross-section, with b = 22 mm and h = 63 mm The supports at A and B act as pins for x-x axis buckling and as fixed supports for y-y axis buckling. Determine the greatest load F(in the unit of kN) the beam will support without causing member AB to buckle. 1₁: B ky 1₂2 Ө F Answer -2m- X b h X Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer:
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
