Question 2 (8 points) Q1(2). The beam is supported by a pin support at point A and a rocker support at point B, and the

[answerhappygod]

Question 2 8 Points Q1 2 The Beam Is Supported By A Pin Support At Point A And A Rocker Support At Point B And The 1 (109.48 KiB) Viewed 33 times

PLease take your time and make sure the answer is correct.You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions.

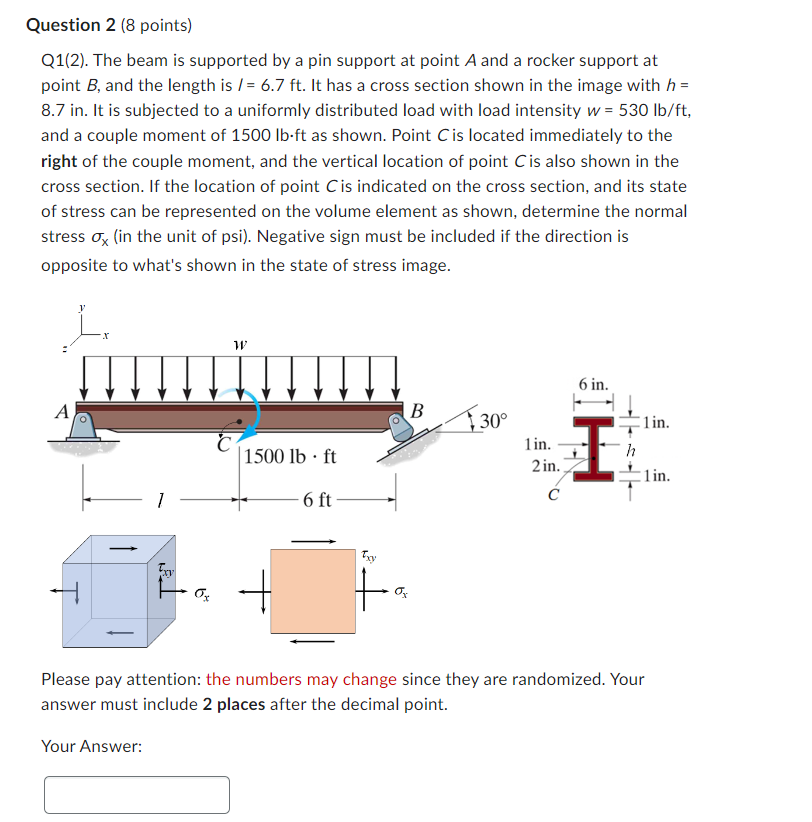

Question 2 (8 points) Q1(2). The beam is supported by a pin support at point A and a rocker support at point B, and the length is /= 6.7 ft. It has a cross section shown in the image with h = 8.7 in. It is subjected to a uniformly distributed load with load intensity w = 530 lb/ft, and a couple moment of 1500 lb-ft as shown. Point C is located immediately to the right of the couple moment, and the vertical location of point C is also shown in the cross section. If the location of point Cis indicated on the cross section, and its state of stress can be represented on the volume element as shown, determine the normal stress ox (in the unit of psi). Negative sign must be included if the direction is opposite to what's shown in the state of stress image. A Exy Ox W 1500 lb ft + . 6 ft Txy t B Ox 30° 1in. 2 in. C 6 in. I 1in. 1in. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer:
