Q2. The simple beam is supported by a pin at point A and a roller at point C. It is subjected to a uniformly distributed

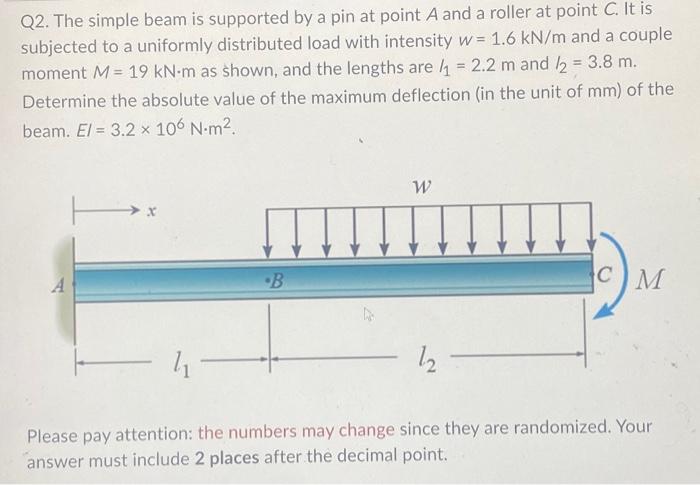

Q2. The simple beam is supported by a pin at point A and a roller at point C. It is subjected to a uniformly distributed load with intensity w= 1.6 kN/m and a couple moment M = 19 kN-m as shown, and the lengths are ₁ = 2.2 m and /2 = 3.8 m. Determine the absolute value of the maximum deflection (in the unit of mm) of the beam. E/= 3.2 x 106 N.m². A H 4- B W 12 CM Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point.
