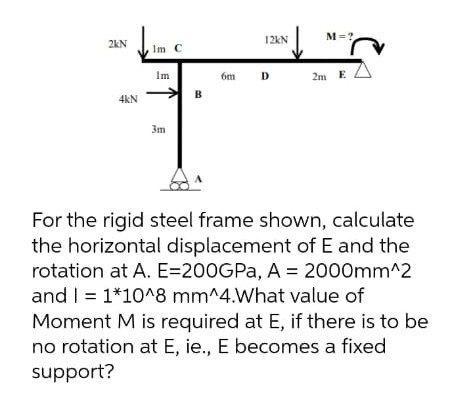

M=? 2KN 12KN Imc om D 2m E Im Я в 4KN 3m For the rigid steel frame shown, calculate the horizontal displacement of E and
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
M=? 2KN 12KN Imc om D 2m E Im Я в 4KN 3m For the rigid steel frame shown, calculate the horizontal displacement of E and
M=? 2KN 12KN Imc om D 2m E Im Я в 4KN 3m For the rigid steel frame shown, calculate the horizontal displacement of E and the rotation at A. E=200GPa, A = 2000mm^2 and I = 1*10^8 mm^4.What value of Moment M is required at E, if there is to be no rotation at E, ie., E becomes a fixed support?
