The 80 kg luminaire is supported by two steel rods interconnected by a B-ring. Determine the average normal stress on ea

Post by answerhappygod »

The 80 Kg Luminaire Is Supported By Two Steel Rods Interconnected By A B Ring Determine The Average Normal Stress On Ea 1
The 80 Kg Luminaire Is Supported By Two Steel Rods Interconnected By A B Ring Determine The Average Normal Stress On Ea 1 (21.22 KiB) Viewed 40 times

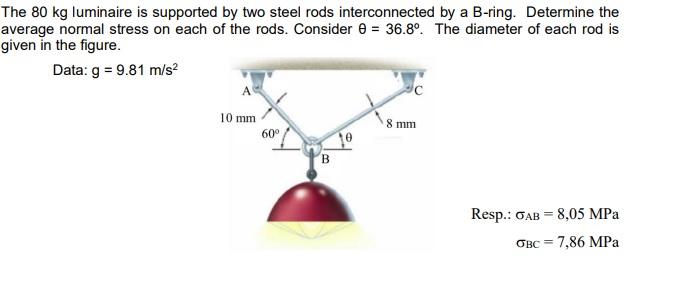

The 80 kg luminaire is supported by two steel rods interconnected by a B-ring. Determine the average normal stress on each of the rods. Consider 0 = 36.8°. The diameter of each rod is given in the figure. Data: g = 9.81 m/s² 10 mm 60⁰ B 8 mm Resp.: GAB = 8,05 MPa OBC= 7,86 MPa
