The lever is attached to axis A by means of a 25mm long key fixed in a keyway slot. Assuming that the shaft is fixed and

Post by answerhappygod »

The Lever Is Attached To Axis A By Means Of A 25mm Long Key Fixed In A Keyway Slot Assuming That The Shaft Is Fixed And 1
The Lever Is Attached To Axis A By Means Of A 25mm Long Key Fixed In A Keyway Slot Assuming That The Shaft Is Fixed And 1 (40.76 KiB) Viewed 19 times

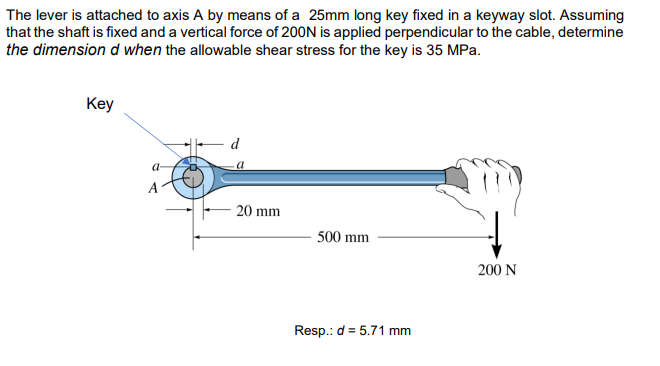

The lever is attached to axis A by means of a 25mm long key fixed in a keyway slot. Assuming that the shaft is fixed and a vertical force of 200N is applied perpendicular to the cable, determine the dimension d when the allowable shear stress for the key is 35 MPa. Key a- A a 20 mm 500 mm Resp.: d = 5.71 mm 200 N
