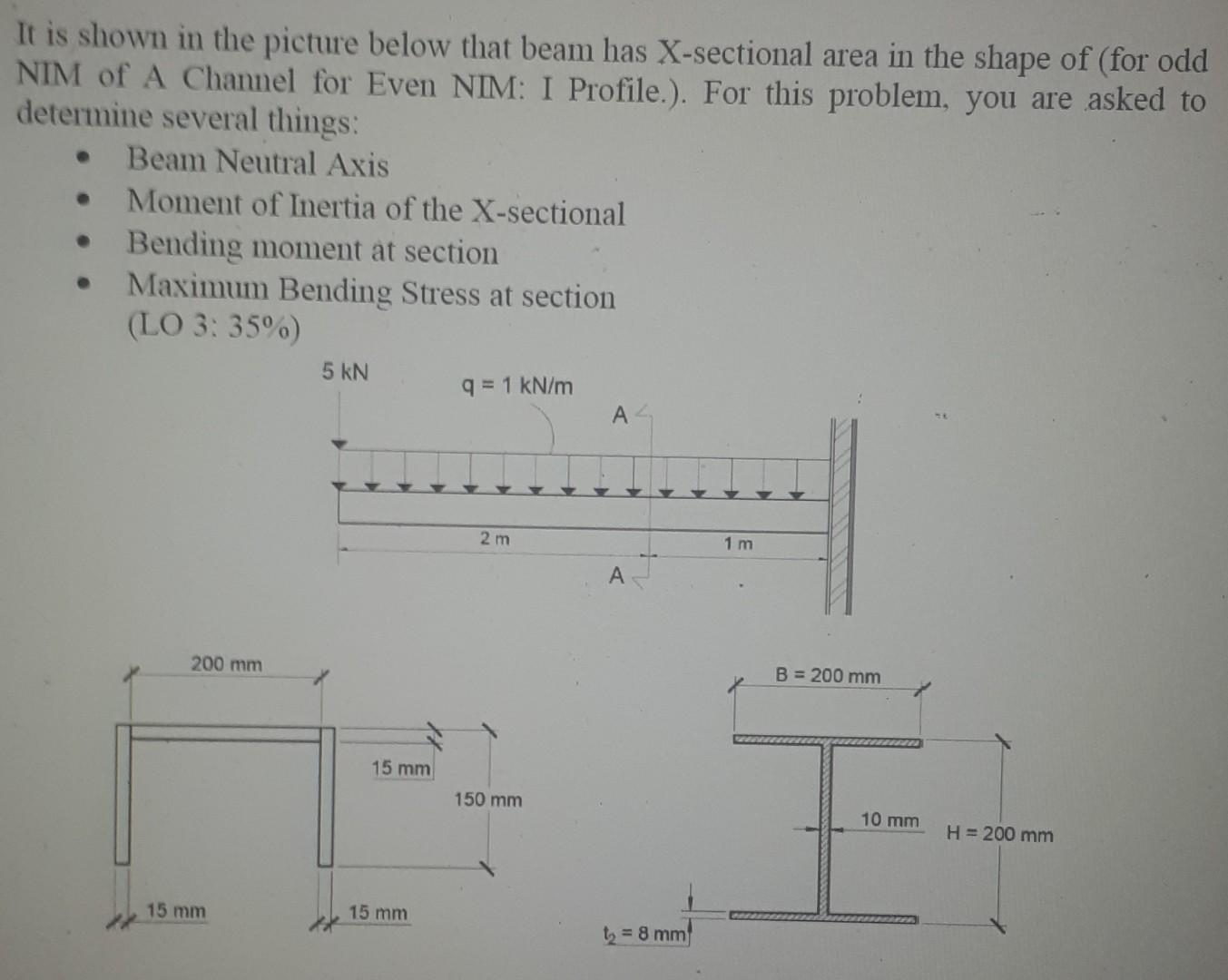

1. It is shown in the picture below that beam has X-sectional area in the shape of (for odd NIM of A Channel for Even NIM: I Profile.). For this problem, you are asked to determine several things:• Beam Neutral Axis• Moment of Inertia of the X-sectional• Bending moment at section• Maximum Bending Stress at section
*even NIM
It is shown in the picture below that beam has X-sectional area in the shape of (for odd NIM of A Channel for Even NIM: I Profile.). For this problem, you are asked to determine several things: Beam Neutral Axis ● Moment of Inertia of the X-sectional Bending moment at section Maximum Bending Stress at section (LO 3: 35%) ● 200 mm 15 mm 5 kN 15 mm 15 mm q = 1 kN/m 2m 150 mm A4 A t₂ = 8 mm 1m B = 200 mm 10 mm H = 200 mm
