A square prism of sides 50mm & height 80mm rests with its base on HP with two of its vertical faces equally inclined to

Post by answerhappygod »

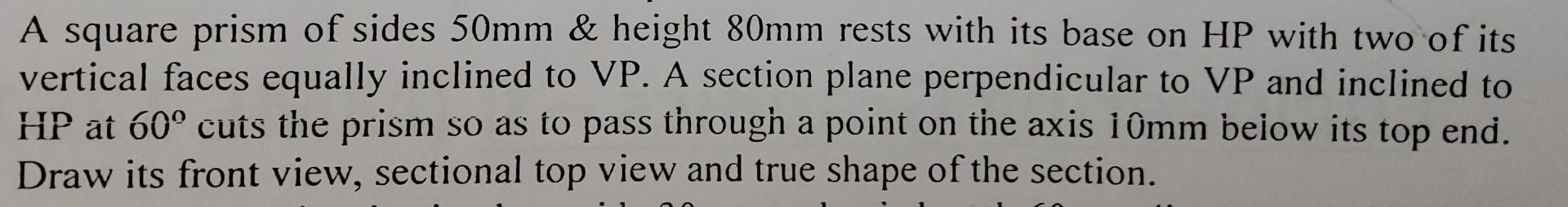

A Square Prism Of Sides 50mm Height 80mm Rests With Its Base On Hp With Two Of Its Vertical Faces Equally Inclined To 1
A Square Prism Of Sides 50mm Height 80mm Rests With Its Base On Hp With Two Of Its Vertical Faces Equally Inclined To 1 (71.31 KiB) Viewed 23 times
A square prism of sides 50mm & height 80mm rests with its base on HP with two of its vertical faces equally inclined to VP. A section plane perpendicular to VP and inclined to HP at 60° cuts the prism so as to pass through a point on the axis 10mm below its top end. Draw its front view, sectional top view and true shape of the section.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
