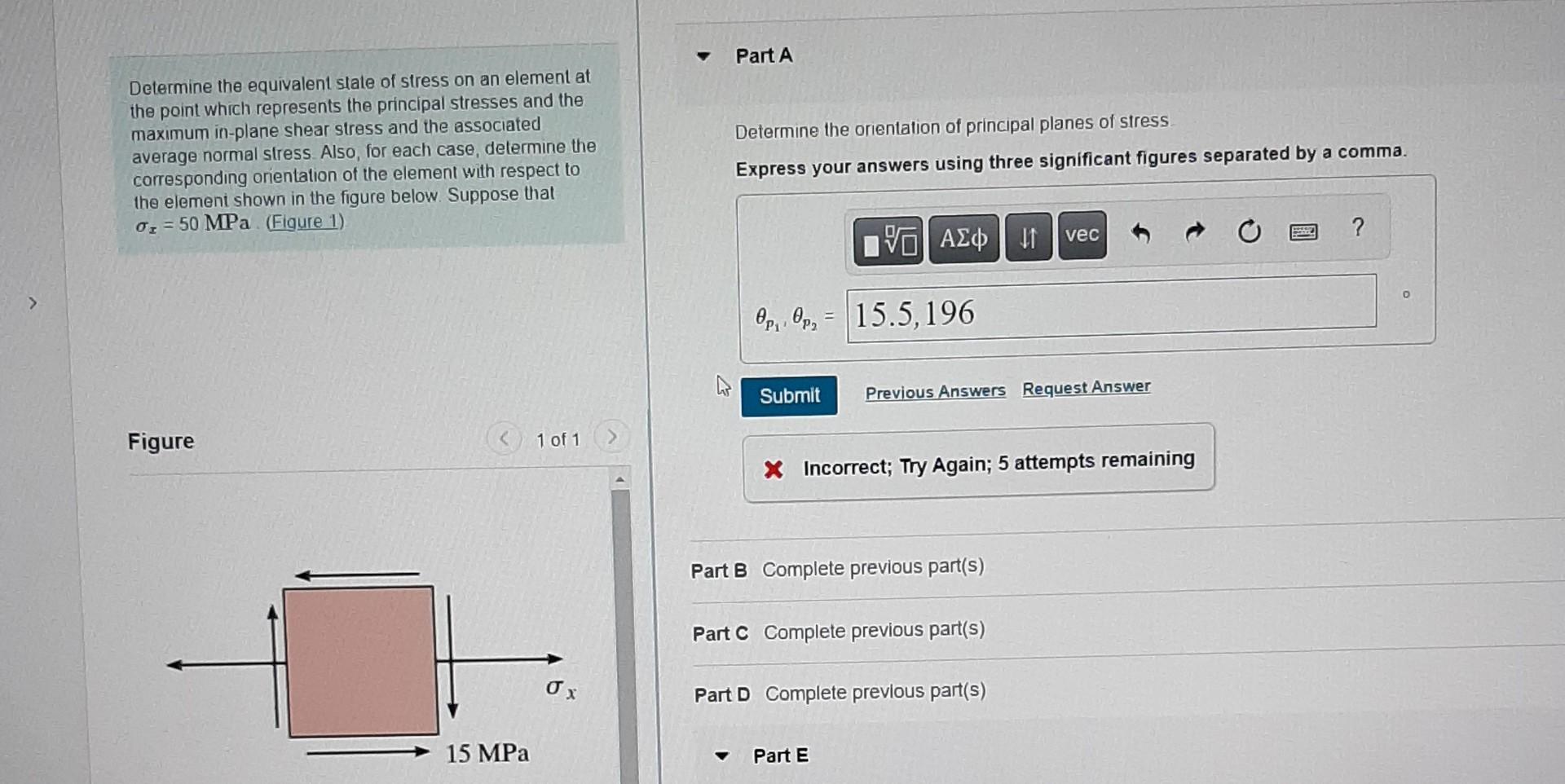

Determine The Equivalent State Of Stress On An Element At The Point Which Represents The Principal Stresses And The Maxi 1 (177.37 KiB) Viewed 34 times

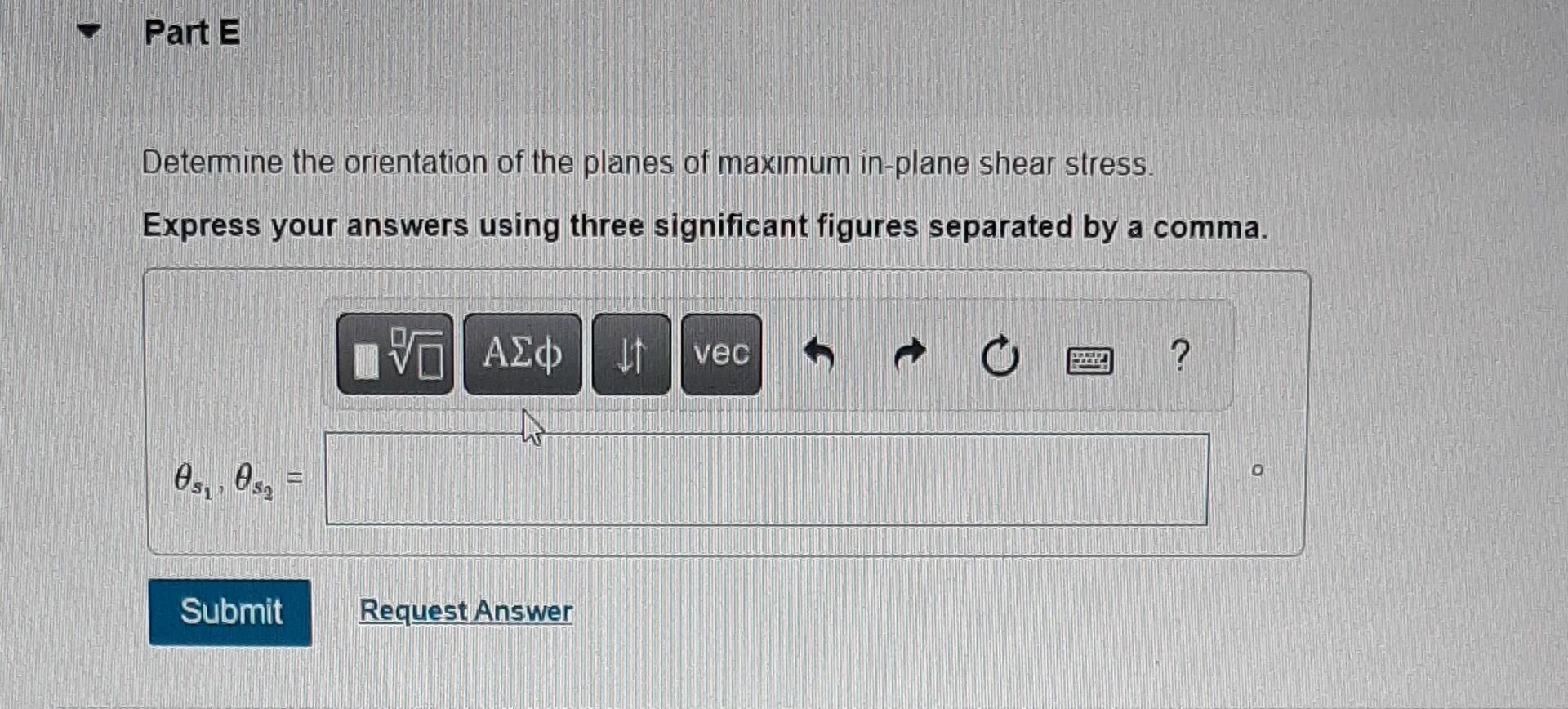

Determine The Equivalent State Of Stress On An Element At The Point Which Represents The Principal Stresses And The Maxi 2 (288.36 KiB) Viewed 34 times
Determine the equivalent state of stress on an element at the point which represents the principal stresses and the maximum in-plane shear stress and the associated average normal stress. Also, for each case, determine the corresponding orientation of the element with respect to the element shown in the figure below. Suppose that 01 = 50 MPa. (Figure 1) Figure 15 MPa 1 of 1 Ux Part A Determine the orientation of principal planes of stress. Express your answers using three significant figures separated by a comma. Op₁0p, 15.5, 196 跖 ΑΣΦ | || = Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B Complete previous part(s) Part C Complete previous part(s) Part E vec Part D Complete previous part(s) ?
Part E Determine the orientation of the planes of maximum in-plane shear stress. Express your answers using three significant figures separated by a comma. 05₁, 05₂ = Submit VGI ΑΣΦ Request Answer It vec ?
