The following layout is based on the CompactLogix PLC's: a. Write a typical address for the second terminal point of the

Post by answerhappygod »

The Following Layout Is Based On The Compactlogix Plc S A Write A Typical Address For The Second Terminal Point Of The 1
The Following Layout Is Based On The Compactlogix Plc S A Write A Typical Address For The Second Terminal Point Of The 1 (41.28 KiB) Viewed 33 times

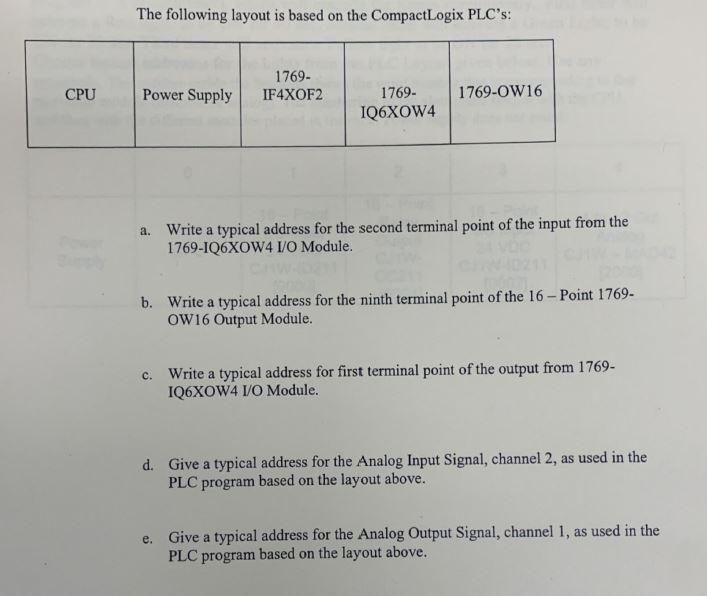

The following layout is based on the CompactLogix PLC's: a. Write a typical address for the second terminal point of the input from the 1769-IQ6XOW4 I/O Module. b. Write a typical address for the ninth terminal point of the 16 - Point 1769 OW16 Output Module. c. Write a typical address for first terminal point of the output from 1769 IQ6XOW4 I/O Module. d. Give a typical address for the Analog Input Signal, channel 2, as used in the PLC program based on the layout above. e. Give a typical address for the Analog Output Signal, channel 1, as used in the PLC program based on the layout above.
