I want to simulate this matlab program, initially I give play tothe script so that it generates the values/variables... later Isimulate the diagram in simulink. but when simulating it gives methis error, how do I solve it?
- Https La Mathworks Com Matlabcentral Fileexchange 54771 10 Machine New England Power System Ieee Benchmark S Tid Srcht 1 (71.13 KiB) Viewed 29 times

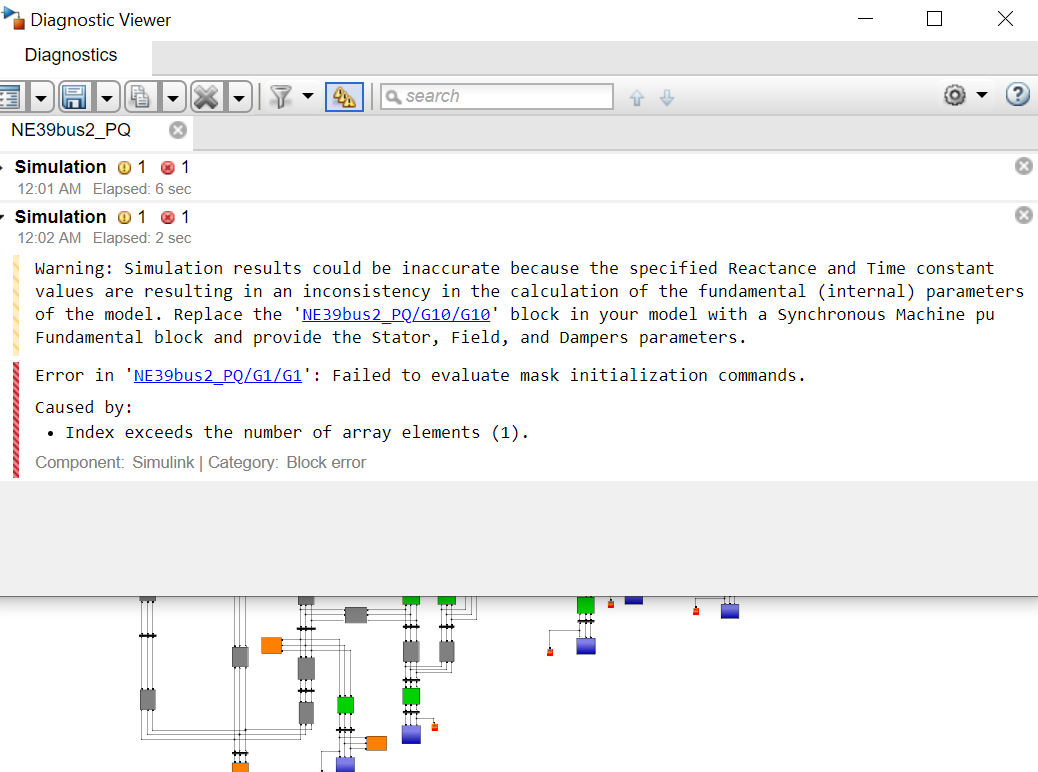

3 Diagnostic Viewer Diagnostics NE39bus2_PQ Simulation 1 1 12:01 AM Elapsed: 6 sec Simulation 1 1 12:02 AM Elapsed: 2 sec search Error in 'NE39bus2_PQ/G1/G1': Failed to evaluate mask initialization commands. Caused by: • Index exceeds the number of array elements (1). Component: Simulink | Categ Block # Warning: Simulation results could be inaccurate because the specified Reactance and Time constant values are resulting in an inconsistency in the calculation of the fundamental (internal) parameters of the model. Replace the 'NE39bus2_PQ/G10/G10' block in your model with a Synchronous Machine pu Fundamental block and provide the Stator, Field, and Dampers parameters. 101 | X
