RL/RC Circuit - Step Response 4. In the circuit shown below, the switch has been open for a long time before closing at

Post by answerhappygod »

Rl Rc Circuit Step Response 4 In The Circuit Shown Below The Switch Has Been Open For A Long Time Before Closing At 1
Rl Rc Circuit Step Response 4 In The Circuit Shown Below The Switch Has Been Open For A Long Time Before Closing At 1 (77.5 KiB) Viewed 29 times

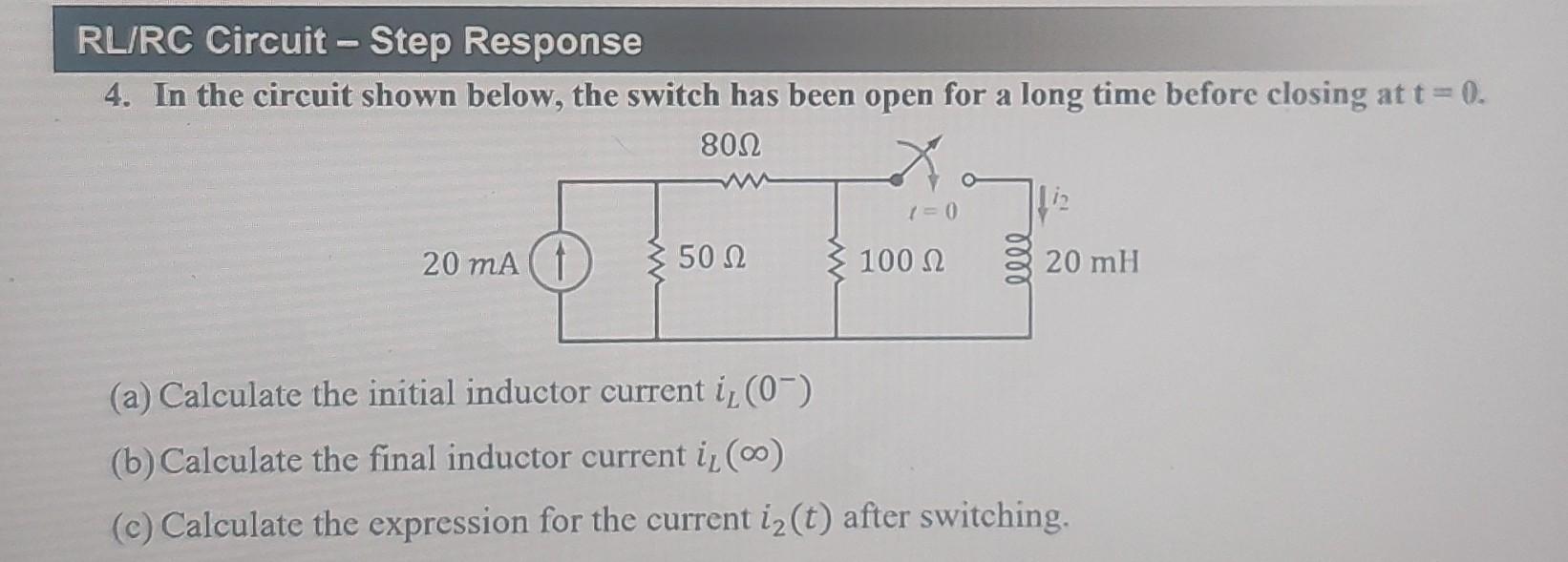

RL/RC Circuit - Step Response 4. In the circuit shown below, the switch has been open for a long time before closing at t = 0. 80Ω 20 mA († 50 Ω 100 Ω elle 20 mH (a) Calculate the initial inductor current i, (0) (b) Calculate the final inductor current i, (∞) (c) Calculate the expression for the current i₂ (t) after switching.
