for the circuit in figure that requires obtaining the voltage gain Av=-20, with RL=10 Kohms and Vcc 12V, gain(B)= 150, R

Post by answerhappygod »

for the circuit in figure that requires obtaining the voltagegain Av=-20, with RL=10 Kohms and Vcc 12V, gain(B)= 150, RE=400ohms . Determine:
a.- the values og the resistances of the circuit considering amaximum symmetrical excursion.
b.- the time constants of the circuit if: Cb=3uF, Cc=15uF andCE= 100uF
c.- the transference function t(s) normalized
d.-the lower cutoff frequency

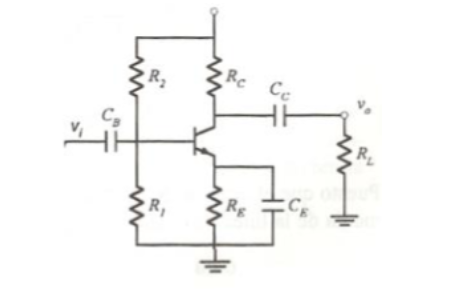

For The Circuit In Figure That Requires Obtaining The Voltage Gain Av 20 With Rl 10 Kohms And Vcc 12v Gain B 150 R 1
For The Circuit In Figure That Requires Obtaining The Voltage Gain Av 20 With Rl 10 Kohms And Vcc 12v Gain B 150 R 1 (57.37 KiB) Viewed 62 times
C₂ R₁ Rc Cc Rg CE R₂₁
