Figure 6. The Non-inverting Op-Amp Configuration. Note that even in the non-inverting case, negative feedback is used. T

Post by answerhappygod »

Figure 6 The Non Inverting Op Amp Configuration Note That Even In The Non Inverting Case Negative Feedback Is Used T 1
Figure 6 The Non Inverting Op Amp Configuration Note That Even In The Non Inverting Case Negative Feedback Is Used T 1 (20.92 KiB) Viewed 36 times

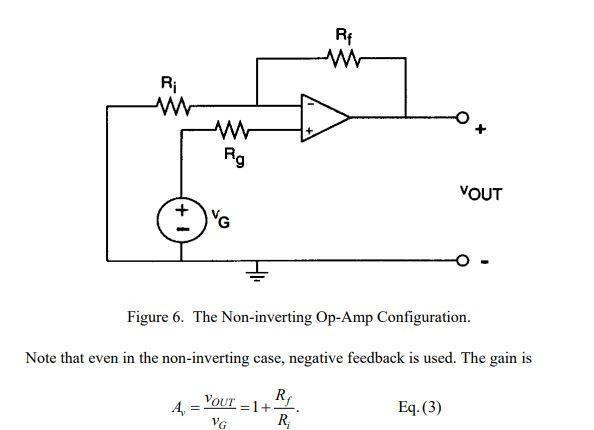

Figure 6. The Non-inverting Op-Amp Configuration. Note that even in the non-inverting case, negative feedback is used. The gain is Av​=vG​vOUT​​=1+Ri​Rf​​.
Frequently an amplifier with power gain but no voltage gain is required. This can be accomplished using the configuration of Figure 6 , but with Rf​=0 and Ri​ left open, i.e., Ri​ equal to infinity. In this case, the gain is extremely close to 1. 1. Set up a unity gain amplifier, repeat the voltage measurements of the preceding section, and record them below.
