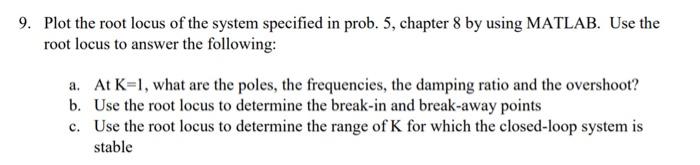

Plot the root locus of the system specified in prob. 5, chapter 8 by using MATLAB. Use the root locus to answer the following: a. AtK=1, what are the poles, the frequencies, the damping ratio and the overshoot? b. Use the root locus to determine the break-in and break-away points c. Use the root locus to determine the range of K for which the closed-loop system is stable

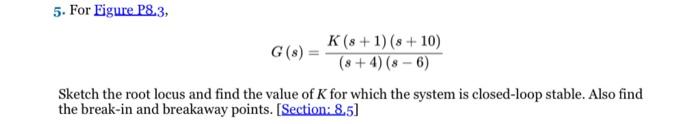

5. For Eigure P83, G(s)=(s+4)(s−6)K(s+1)(s+10) Sketch the root locus and find the value of K for which the system is closed-loop stable. Also find the break-in and breakaway points. [Section: 8.5]
