topic/subject: ANALYSIS AND DESIGN OF ELECTRONIC CIRCUITS Q3) Two 555 timers are connected together as shown in Figure Q

Post by answerhappygod »

topic/subject: ANALYSIS AND DESIGN OF ELECTRONICCIRCUITS
Q3)
Two 555 timers are connected together as shown in Figure Q3. Thediode in the figure is an ideal diode
(a) Draw and completely label the waveforms for V01, VC1, V0 andVC3. All the waveforms must be drawn parallel at the time-axis.Clearly show the relationship between these waveforms. (8marks)
(b) Calculate the duty cycle of the output waveform V0. (8marks)
Topic Subject Analysis And Design Of Electronic Circuits Q3 Two 555 Timers Are Connected Together As Shown In Figure Q 1
Topic Subject Analysis And Design Of Electronic Circuits Q3 Two 555 Timers Are Connected Together As Shown In Figure Q 1 (13.77 KiB) Viewed 31 times

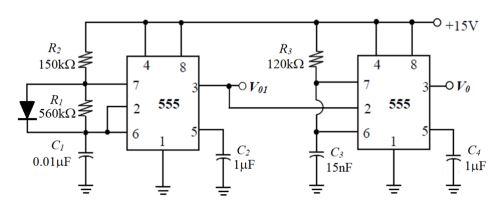

FIGURE Q3
R₂ 150kΩ R₁ 560k2: C₁ 0.01 μF I N 10 + 555 411 8 Hell R3 120k2 OV01 C₂ 1μF HE" C₂ 15nF T 2 60 00 555 411 +15V -OV Hli C4 1uF
