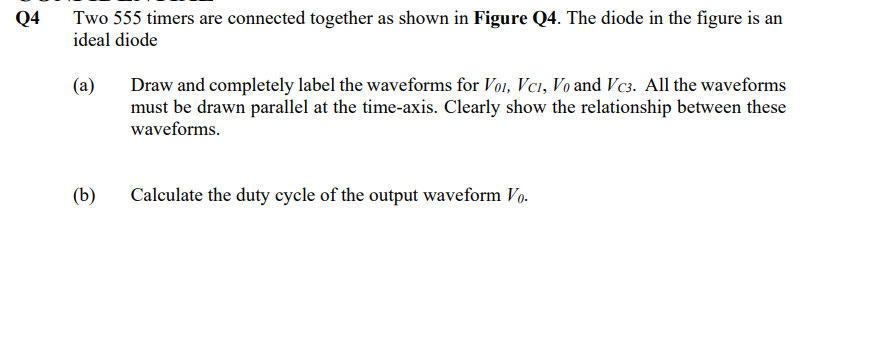

Q4 Two 555 Timers Are Connected Together As Shown In Figure Q4 The Diode In The Figure Is An Ideal Diode A B Draw A 1 (42.63 KiB) Viewed 35 times
dear answers expert answer asap and well
Q4 Two 555 timers are connected together as shown in Figure Q4. The diode in the figure is an ideal diode (a) (b) Draw and completely label the waveforms for Voi, VCI, Vo and Vc3. All the waveforms must be drawn parallel at the time-axis. Clearly show the relationship between these waveforms. Calculate the duty cycle of the output waveform Vo.
R₂ 150kΩ R₁ 560kΩ: C₁ 0.01 μF 7 2 6 4 8 555 OV01 C₂ 1μF R3 120kΩ Figure Q4 C3 15nF 7 2 6 4 8 555 +1₁ -O +15V 30Vo C4 1μF
