11) What is the 3-dB high cutoff frequency (50? (Mark your solution on the frequency response plot) Solution: 12) What i

[answerhappygod]

11 What Is The 3 Db High Cutoff Frequency 50 Mark Your Solution On The Frequency Response Plot Solution 12 What I 1 (29.98 KiB) Viewed 41 times

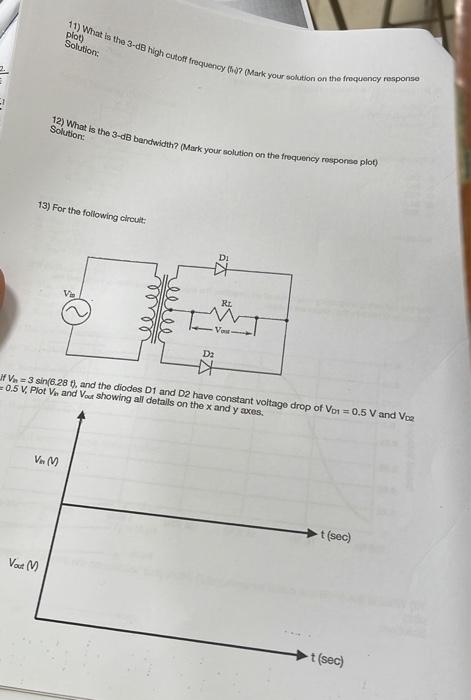

11) What is the 3-dB high cutoff frequency (50? (Mark your solution on the frequency response plot) Solution: 12) What is the 3-dB bandwidth? (Mark your solution on the frequency response plot) Solution: 13) For the following circuit: VnM Vout (V) Vi AZ Vo D₂ If Va=3 sin(6.28 t), and the diodes D1 and D2 have constant voltage drop of Voi = 0.5 V and Voe 0.5 V, Plot Vin and Vout showing all details on the x and y axes. t (sec) JEDAN -t (sec)
