Guidelines -No phones allowed -No smart tablets allowed You cannot borrow a calculator. You can only use your own. Panow

[answerhappygod]

Guidelines No Phones Allowed No Smart Tablets Allowed You Cannot Borrow A Calculator You Can Only Use Your Own Panow 1 (37.38 KiB) Viewed 27 times

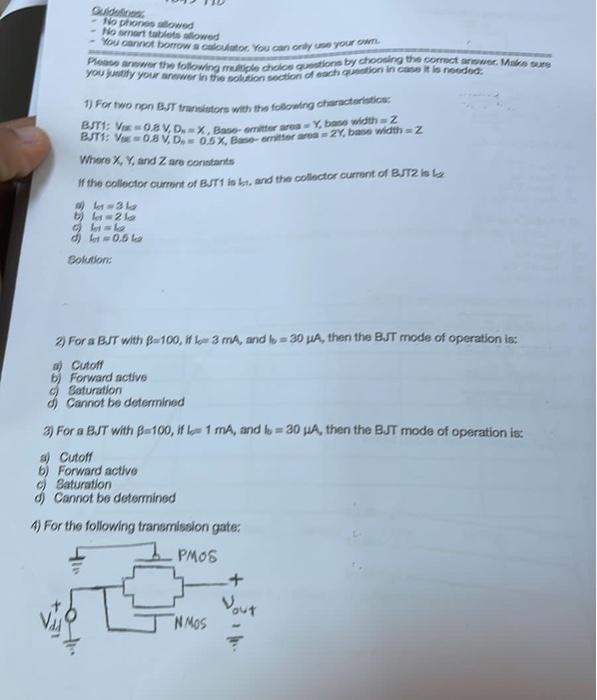

Guidelines -No phones allowed -No smart tablets allowed You cannot borrow a calculator. You can only use your own. Panower the following multiple choice questions by choosing the correct answer. Make surs you justify your answer in the sopion section of each question in case it is needed 1) For two npn BJT transistors with the following characteristics BJT1: V=0.8V,D, X, Base-emitter area-Y, base width-Z BJT1: Va=0.8 V. De=0.5%, Base-emitter area=ZY, base width=Z Where X, Y, and Z are constants If the collector current of BJT1 is le, and the collector current of BJT2 is l alt=3 la b) les=2 l l d) t=0.5 Bolution: 2) For a BJT with B-100, if le 3 mA, and le=30 μA, then the BJT mode of operation is: a) Cutoff b) Forward active Saturation d) Cannot be determined 3) For a BJT with B-100, if l 1 mA, and l=30 μA, then the BJT mode of operation is: a) Cutoff b) Forward active c) Saturation d) Cannot be determined 4) For the following transmission gate: PMOS NMOS -+
